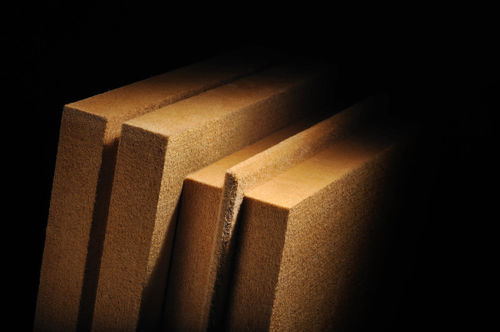

Thermal insulation UD-Q11 PROTECT
wood fiberrigid panelwall

thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
thermal insulation
Add to favorites
Compare this product


Characteristics

Type
thermal
Material
wood fiber
Format
rigid panel
Use
wall, for facades, for roof
Technical characteristics
hydrophobic
Fire Class
Euroclass E
Thermal conductivity

0.043 W/(m.K), 0.044 W/(m.K), 0.046 W/(m.K), 0.047 W/(m.K)

Thickness

Min.: 22 cm
(8.66 in)

Max.: 160 cm
(62.99 in)

Description

The energy- and cost-saving underlay board. Additional benefit without additional cost. HOMATHERM® UD-Q11 protect offers you more than just wind and rain protection: With its low thermal conductivity and thicknesses up to 160 mm, it saves you energy and also scores top results for protection from heat and noise. YOUR INSULATION ADVANTAGES AT A GLANCE: Manufactured using a modern dry process Circumferential symmetrical tongue and groove High compressive strength Hydrophobic throughout Non-skid surface Vapour permeable National technical approval APPLICATIONS Types of application in accordance with DIN 4108-10: DADds, DIzg, DEOds; WABds, WH, WIzg, WTR Wind-tight, water-draining second layer under various roofing materials Underlay board on various on-roof insulation systems Underlay board with insulation between rafters (e.g. with holzFlex® protect) As emergency roof, weather exposable for up to 10 weeks construction façades (directly on wall studs), solid timber wall, ventilated solid construction façades
