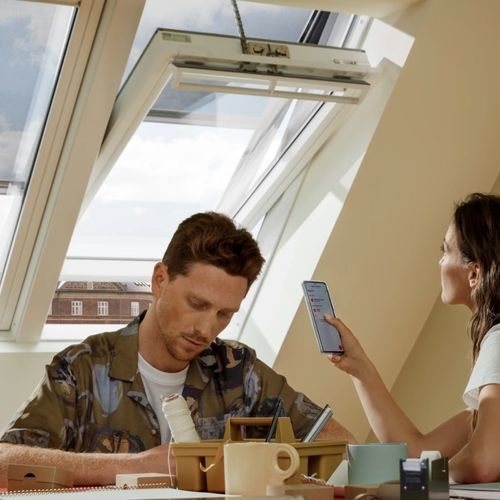

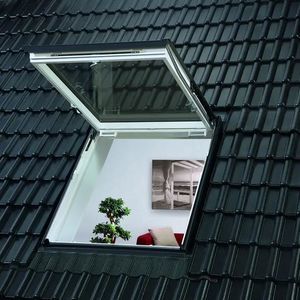

Electric roof window ZZZ 275

metaltop-hung1 leaf

Product name
230 V Electric Roof Window VELUX

Overview
230 V electric roof window designed for wired integration into building automation systems. The unit includes an integrated rain sensor and provides the possibility to connect an electric roller shutter. Installation follows the same mounting process as manual roof windows; the roller shutter is connected directly to the window motor.

Key benefits

• Indicative surcharge: 400 € net compared with the manual roof window.
• Integrated rain sensor (can be replaced by an external building management sensor if required).
• Simple wired integration with building automation systems.
• Connection via a 6-conductor cable (2 conductors for the window, 2 for the roller shutter).
• Installation: window mounted as usual; roller shutter connected to the window motor for straightforward assembly.
• Functional checks can be performed with the reusable Test Kit ZZZ 275 (sold separately).

Wiring & control
Two conductors are provided for the window (open/close) and two for the roller shutter (up/down). Each conductor is colour-coded as indicated on the rating plate and wiring diagram.
The function of an input is defined by the presence of the 230 V supply. If only the window is powered at 230 V, only the window responds to control signals. If both window and roller shutter are connected, both devices respond to commands on the control cable. Each product must be connected to its own switch or control channel.

Compatibility with electric sun shading

• It is generally not recommended to have electric blinds receive control commands via the 230 V window wiring unless the blind is specifically designed for that arrangement. The blind can be operated via the supplied wall switch.

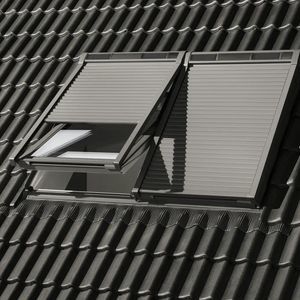

• For 230 V GGL/GGU electric windows, the roller shutter is connected in the junction box to the two shutter conductors; power is supplied via the window mains cable and the integrated power supply.
• When retrofitting a manually operated roof window, the KLC 230 power supply may be required for certain sizes/cases.

Available variants & sizes
An overview of available variants and sizes for the 230 V roof window is provided; a compact product summary and size overview are available in a separate PDF.

Accessories & Test Kit

• Test Kit 230 V (ZZZ 275) for verification of wired integration after installation; reusable and sold separately.
• Rain sensor included – removable and can be replaced by an external BMS rain sensor if required.

Multimedia
A product video is available demonstrating installation and functional testing with the Test Kit ZZZ 275.

Technical specifications

• Supply voltage: 230 V (electric, wired product family)
• Connection cable: 6-conductor cable (window and roller shutter connection possible)
• Conductors: 2 for window (open/close), 2 for roller shutter (up/down)
• Rain sensor: integrated (external sensor use possible)
• Price note: 400 € net surcharge versus manual roof window (indicative)
• Test Kit: ZZZ 275 for function check (reusable)
• Installation: window mounted as for manual windows; roller shutter connected to the window motor
• Control: each product requires its own switch or control channel
