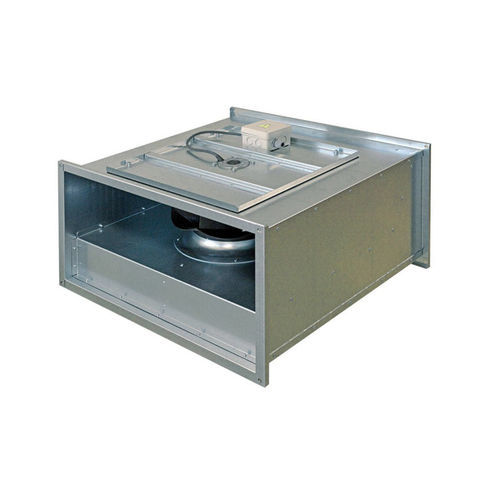

Centrifugal fan VDF ECductcommercialindoor
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Installation
- duct
- Sector
- commercial
- Location
- indoor
- Material
- galvanised steel
- Other characteristics
- permanent extraction
- Air flow
Max.: 14,595 m³/h
(515,417.6 ft³/h)Min.: 200 m³/h
(7,062.9 ft³/h)- Weight
14 kg, 18 kg, 20 kg, 24 kg, 45 kg
(30.86 lb, 39.68 lb, 44.09 lb, 52.91 lb, 99.21 lb)- Height
250 mm, 300 mm, 350 mm, 450 mm, 550 mm
(10 in, 12 in, 14 in, 18 in, 22 in)- Width
450 mm, 550 mm, 650 mm, 750 mm, 850 mm
(18 in, 22 in, 26 in, 30 in, 33 in)- Length
476 mm, 586 mm, 605 mm, 606 mm, 792 mm
(19 in, 23 in, 24 in, 24 in, 31 in)- Power
103 W, 170 W, 470 W, 500 W, 780 W
Description
The casing is made up of galvanized steel sheet.
Backward curved type, direct coupled and external rotor fan.
Easy installation with the self-flanged inlets and outlets.
Motor protection class is IP 44 and electrical connection box protection class is IP 67.
Accessible rotor and motor for maintenance and service.
The fans can be installed at any angle.
The fans can be controlled by 0-10V control or speed controllers.
Pressure controller can be used as an optional accessory to keep the set pressure value constant by adjusting the motor revolution automatically.
FLR Filter Box
SILENT Silencer
EBD Rectangular Flexible Connection
NRK Rectangular One Way Damper
