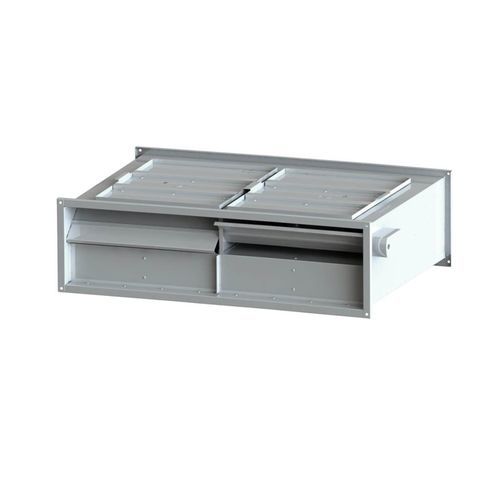

Extractor fan VTF
ductcommercialgalvanized steel

extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor
Installation
duct
Sector
commercial
Material
galvanized steel
Location
indoor
Other characteristics
permanent extraction
Air flow

Min.: 61 m³/h
(2,154.2 ft³/h)

Max.: 5,872 m³/h
(207,367.7 ft³/h)

Weight

16 kg, 18 kg, 20 kg, 37 kg, 53 kg
(35.27 lb, 39.68 lb, 44.09 lb, 81.57 lb, 116.84 lb)

Height

300 mm, 350 mm, 450 mm, 550 mm
(12 in, 14 in, 18 in, 22 in)

Width

1,050 mm, 1,250 mm, 1,450 mm, 1,650 mm
(41 in, 49 in, 57 in, 65 in)

Length

586 mm, 605 mm, 606 mm, 792 mm, 930 mm
(23 in, 24 in, 24 in, 31 in, 37 in)

Power

210 W, 230 W, 500 W, 510 W, 800 W

Description

CE marked in compliance with applicable directives The casing is made up of galvanized steel sheet. Backward curved type, direct coupled and external rotor fan. Easy installation with self-flanged inlets and outlets Motor protection class is IP 44 and electrical connection box protection class is IP 67. Accessible fan for maintenance and service Mounting capability in all angles Air flow direction is determined automatically through the motor operated damper Operation of the fans by concurrent ageing method through auto change over panel working as time adjusted
