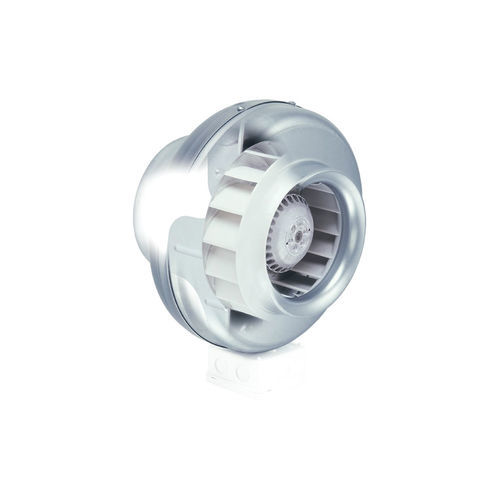

Extractor fan CK
centrifugalductcommercial

extractor fan
extractor fan
Add to favorites
Compare this product


Characteristics

Type
extractor, centrifugal
Installation
duct
Sector
commercial, residential, industrial
Material
galvanized steel
Location
indoor
Other characteristics
permanent extraction
Air flow

Min.: 34 m³/h
(1,200.7 ft³/h)

Max.: 1,555 m³/h
(54,914.3 ft³/h)

Noise level

36 dB, 37 dB, 38 dB, 39 dB, 42 dB

Weight

2.6 kg, 2.9 kg, 3.9 kg, 4.1 kg, 4.7 kg
(5.73 lb, 6.39 lb, 8.6 lb, 9.04 lb, 10.36 lb)

Height

Min.: 243 mm
(10 in)

Max.: 402 mm
(16 in)

Width

243 mm, 245 mm, 271 mm, 345 mm
(10 in, 10 in, 11 in, 14 in)

Length

159 mm, 161 mm, 167 mm, 200 mm, 263 mm
(6 in, 6 in, 7 in, 8 in, 10 in)

Power

41 W, 59 W, 60 W, 108 W, 129 W

Description

11 models for 6 different diameters in the range of Ø100-315 mm High efficient and trouble-free operation Easy and quick installation Specially designed galvanized casing allows reduced turbulence Mounting capability in all angles Backward curved centrifugal blades providing high pressure and efficiency The opportunity to work in humid environments, motor protection class is IP 44 and electrical connection box protection class is IP 54 Single phased motor with automatically activated thermic protection, external rotor and maintenance-free bearings Speed controllers are optional to control the capacity in the range of % 0 - %100 VSC Speed Controller FLR Filter Box SILENT Silencer EBD Rectangular Flexible Connection NRK Rectangular One Way Damper VK Air Flow Shutter BSV Wire Mesh
