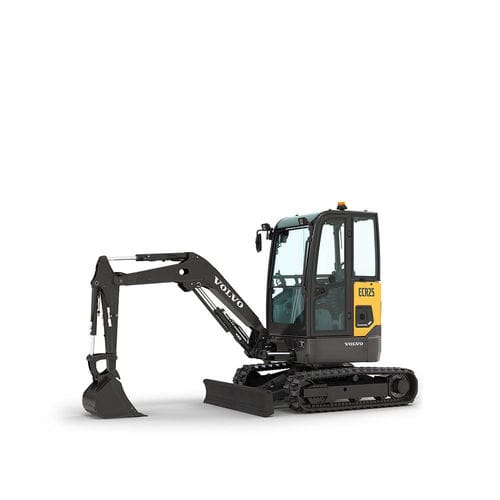

The Volvo ECR25 Electric excavator is a true game changer. The first in a new range of electric compact excavators, it takes a proven concept – and then adds battery electric power, so you’ll have all the performance you need, in the compact package you demand. Volvo CE is moving towards a brighter, more sustainable future, and now you can too.
Operating weight - 5,908 - 6,129 lbs
Maximum digging depth (short/long arm) - 8′ 1″ - 9′ 1″ ft in
Maximum dump height (short/long arm) - 9′ 2.0″ - 9′ 8″ ft in
Travel speed, low / high - 1.49 / 2.8 mph
Breakout force - 5,020 lbf
Tear out force (arm breakout force) (short/long arm) - 3372 - 3993 lbf
Overall width - 5′ 1″ - 0″ ft in
Overall length (short/long arm) - 12′ 9″ - 13′ 2″ ft in
Main hydraulic pump max. flow - 15.3 gal/min
Electric motor (peak) - 24 hp
Battery voltage - 48 V
Battery capacity (full package) - 20 kWh
On board charging time 230 VAC 16A - ~ 5 h
Off board charging time 400 VAC 32A - ~ 50 min for 80% charge
Sound pressure level (LpA) at operator's position - 74 dB
Sound power level (LWA) around the machine - 84 dB
Indicative runtime (depending on application) - Up to 4 hours
