Medium excavator EW240

rubber-tiredhandlingergonomic

Overview

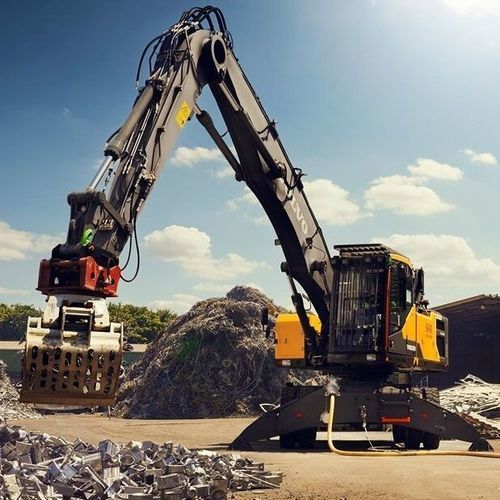

The EW240 electric material handler is designed for waste, recycling and heavy material-handling applications where continuous, grid-connected power is required. The net-connected configuration eliminates on-site refuelling and battery recharging, reduces noise, vibration and heat, and removes tailpipe emissions to enable operation in noise- or emission-restricted environments.

Key features & benefits

• Grid-connected power (AC 400 V) via a protected ground-fed cable for continuous operation and simplified energy supply.
• Lower operating costs through efficient electric drive (electric motor peak ~90 kW) and no energy consumption during idle periods.
• Reduced maintenance: no engine oil, no traditional engine filters or water separators; ground-level access to pump and cooling module; easily accessible electric control cabinet on the upper frame side.
• Low noise and zero tailpipe emissions: suitable for indoor use, low-emission zones and noise-sensitive sites, and operations outside standard hours.
• Versatility for recycling and waste: compatible with durable grapples, heavy-duty buckets, cable buckets, tilt buckets, low-noise hydraulic breakers, sweepers and multiple quick coupler systems.
• Operator comfort and control: ergonomic dashboard and monitor, optimized hydraulics and joysticks, heated suspended seat, flat right-side visibility, rear and side cameras, LED lighting and electric climate compressor.

Technical summary (page table)
Operating weight | 26,200 kg
Electric motor (peak) | 90 kW
Connector type | Type 2

Attachments & options
Wide range of attachments for recycling and waste handling: heavy-duty buckets, cable buckets, tiltable ditching buckets, low-noise hydraulic breakers (examples: HB14/HB15/HB18 low-noise versions), sweepers, universal and market-specific quick couplers, tiltrotators and specialist grapples. Available options include FOPS cab, one-piece window, height limitation, different cable connections and double-damped hydraulic elevated cab.

Technical specifications / caractéristiques

• Operating weight: 26,200 kg (57,760 lbs)
• Electric motor (peak): 90 kW (product table). A 110 kW figure is also referenced in some descriptive text for network-connected operation (400 V AC).
• Electric motor efficiency: approximately 99% (feature text)
• Power connection: grid connected, AC 400 V via protected ground-fed cable
• Connector type: Type 2
• Continuous operation: designed for round-the-clock productivity without on-board refuelling or battery swapping
• Noise & emissions: significant reduction in noise, vibration and heat; zero tailpipe emissions
• Maintenance: fewer engine-related consumables; ground-level access to pump and cooling module; side-mounted electric control cabinet
• Operator features: heated suspended seat, optimized hydraulics and joysticks, cameras, LED lighting and electric climate compressor
• Attachment compatibility: grapples, buckets and a wide range of Volvo and market-specific attachments for recycling and waste handling
