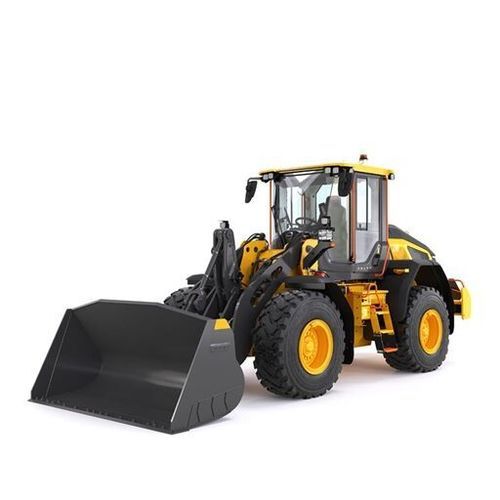

Rubber-tired loader L90

wheeledelectricdiesel

Overview
The L90 Electric Volvo wheel loader is a 15-ton-class electric machine with a 4.5 tonne rated load, designed to reduce operating costs, lower noise and eliminate tailpipe emissions. With a 180 kWh installed battery (153 kWh usable) and DC fast-charging capability, it suits indoor work and urban sites while remaining versatile across rehandling, forestry, agriculture, quarries and waste applications.

Highlights

• Zero tailpipe emissions – suitable for indoor and low-emission zones
• Rated load: 4.5 tonnes; machine class: ~15 tonnes
• Installed battery capacity: 180 kWh; usable capacity: 153 kWh
• DC fast charging up to 120 kW (20%→80% in ~55 minutes)
• Indicative runtime: 4–6 hours (application dependent)
• Reduced running and maintenance demand vs diesel driveline (typical savings)

Key product features

• Electric driveline with dedicated motors for propulsion and hydraulics providing instant torque and smooth response
• Thermal management and battery conditioning (Ready to Run option) to pre-heat/cool batteries and cab for optimal performance
• Energy recovery (regeneration) during deceleration to extend runtime and reduce brake wear
• Torque Parallel (TP) linkage for load stability, high breakout and lifting forces and improved visibility
• Wide range of Volvo attachments (buckets, forks, grapples, material-handling arms, sweepers) for multi-application use
• Volvo Co‑Pilot / Load Assist and My Equipment connectivity options to monitor battery status, hours and machine data
• Service-friendly design: ground-level access, swing-out radiators and electronic engine cover

Technical specifications
Static tipping load at full turn: 10,100 kg
Bucket capacity: 2.1 - 7 m³
Log grapples (area): 1.3 - 2.4 m²
Operating weight: 14,500 - 17,300 kg
Breakout force: 143 kN
Rated power: 140 kW
Battery voltage: 600 V
Usable battery capacity: 153 kWh
Installed battery capacity: 180 kWh
DC charging capacity: 120 kW
Fast charging (20%→80%): ~55 minutes at 120 kW DC
Indicative runtime (application dependent): 4–6 hours
Connector type: CCS2
Tires: 20.5 R25 L3

Applications & benefits

• Indoor operation and urban job sites where zero tailpipe emissions and low noise are required
• Rehandling, forestry and log handling, agriculture and landscaping, quarries and mining, waste and recycling
• Potential for significant energy and operating cost reductions compared with diesel equivalents
• Lower noise and vibration levels improve operator comfort and on-site communication

Additional specifications

• Operating weight: 14,500 - 17,300 kg
• Bucket capacity: 2.1 - 7 m³ (typical configuration note: based on 2.6 m³ STE H BOE bucket)
• Installed battery capacity: 180 kWh
• Usable battery capacity: 153 kWh
• Battery voltage: 600 V
• Rated power: 140 kW
• DC charging capacity: 120 kW (fast charge capability)
• Fast charge time (20%→80% at 120 kW DC): approx. 55 minutes
• Indicative runtime: 4–6 hours depending on application
• Connector type: CCS2 (Type 2 automotive standard inlet)
• Static tipping load at full turn: 10,100 kg
• Breakout force: 143 kN
• Tires: 20.5 R25 L3
• Rated load: 4.5 t (machine class ~15 t)
