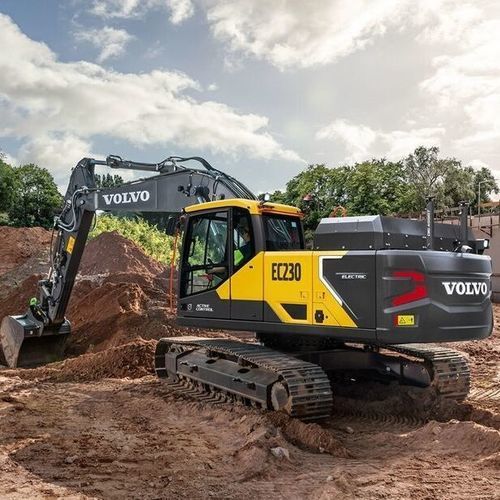

Medium excavator EC230

largecrawlerstandard

Overview
The EC230 Electric is built on the proven technology of the Volvo crawler excavator and combines full machine performance with the benefits of electrification. Operators benefit from lower noise, reduced vibration, more responsive hydraulics due to the electric motor, absence of exhaust fumes and a generally improved in-cab and on-site working environment.

Highlights

• Low noise and lower vibration for improved operator comfort and safer site communication
• More responsive hydraulics enabled by the electric drive
• Emission-free operation with no tailpipe exhaust
• Maintenance advantages from electric motor design (fewer engine-related components)

Charging & Runtime
The EC230 Electric is equipped with a CCS2 connector and is delivered with a 22 kW charging cable for CEE socket charging. Charging and range details include: onboard 22 kW charging (via 400V/32A) with typical 10–12 hour full charge; 150 kW DC fast charging (CCS2) allowing recharge in about 80–90 minutes from empty; 40 kW portable charger (600V/66A) taking approximately 5–6 hours; available Power Unit solutions for fast charging at sites with limited grid capacity (input up to 125A/400V AC, output up to 150 kW). Indicative operating runtime (depending on application and duty cycle) is up to 4–5 hours and a full working day can be achieved with mid-shift fast charging.

Features & Benefits

• Clean and comfortable: reduced noise, dust, vibration and heat improve operator alertness and productivity
• Electric is smart business: lower energy-related operating costs and high motor efficiency; energy is not consumed when the machine is idle
• Get the complete solution: no refuelling, lower maintenance costs vs diesel, and compatibility with Volvo charging options and power units
• Flexibility with standard connector: CCS2 standard connector for wide charger availability across markets
• Proven Volvo technology: uses battery and motor technology already proven in Volvo trucks
• Serviceability: maintenance-free electric motor and reduced engine-related service requirements

Technical specifications

• Operating weight: 23,000 - 26,100 kg
• Gross power: 160 kW (at 1,600 rpm)
• Battery voltage: 600 V
• Battery capacity: 264 kWh
• Indicative runtime (depending on application): Up to 4–5 hours
• Bucket capacity: 0.48 - 1.44 m³
• Lifting capacity (along undercarriage): 7,560 kg (at reach/height 6 / 1.5 m)
• Max. digging reach: 9,930 mm
• Max. digging depth: 6,730 mm
• Breakout force SAE J1179 (Normal): 141 kN
• Breakout force SAE J1179 (Boost): 149 kN
• Tear out force SAE J1179 (Normal): 104 kN
• Tear out force SAE J1179 (Boost): 110 kN
• Overall width: 2,990 mm
• Tail swing radius: 2,850 mm
• Connector type: Type 2 / CCS2 compatibility
