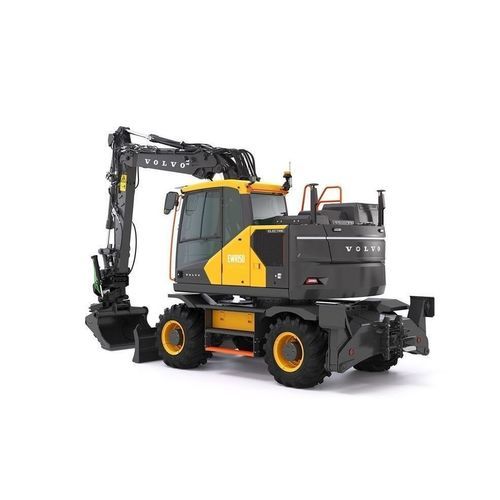

Rubber-tired excavator EWR150

small turning radiuscompactfor rock

Overview
The 15-tonne EWR150 Electric wheeled excavator features the shortest tail radius in its class and is designed for inner-city use and space-restricted jobsites. Based on the proven Volvo EWR150E concept, this fully electric variant delivers compact dimensions, enhanced digging performance, zero exhaust emissions and near-silent operation for noise-restricted environments.

Model key data

• Operating weight: 16,600 - 17,900 kg
• Bucket capacity: 0.67 m³
• Connector type: CCS2

Features & Benefits

• Access noise- and low-emission sites — Zero exhaust emissions and near-silent operation enable work in noise-sensitive or restricted areas and support out-of-hours operations close to schools, hospitals and city centers.
• Full-shift capability — Energy-efficient driveline, recovery functions and battery capacity allow many applications to run a full working day without recharging, maximising uptime and productivity.
• Flexible charging — Integrated 22 kW on-board AC charger with cable and adapters for wall socket/wallbox charging plus support for off-board DC fast chargers, via an automotive-standard CCS2 inlet.
• Lower operating costs — Factory-designed electric driveline and thermally managed batteries improve energy efficiency and reduce maintenance compared with converted machines.
• Jobsite versatility — Upgraded kinematics deliver increased reach and lift capacity with a reduced front swing. Multiple undercarriage and attachment options (outriggers, blade, tiltrotator compatibility and a wide range of Volvo Attachments) expand application scope.

Attachments (examples)

• Buckets: heavy duty (universal cut), cable bucket (aggressive cut), fixed ditching, tiltable ditching, general purpose (straight cut)
• Hydraulic breakers: HB14 Low Noise, HB15 Low Noise, HB18 Low Noise
• HOLMS attachments: Sweeper Compact
• Quick couplers: Universal quick coupler with Front-Pin Lock, Steelwrist Symmetrical quick coupler, Everdigm Universal quick coupler, Steelwrist® Auto Connect Quick Coupler
• Tilt rotators: Steelwrist tiltrotator

Technical table (key values)
Battery capacity: 270 kWh
Battery voltage: 600 V
Operating weight: 16,600 - 17,900 kg
Bucket capacity: 0.67 m³
Breakout force, ISO (Boost): 108.5 kN
Max speed: 21.7 km/h
Max digging depth: 5,230 mm
Max digging reach: 8,960 mm
Lifting capacity, along undercarriage: 5,600 kg
...at reach / height: 6 / 1.5 m
Tail swing radius: 1,720 mm
Connector type: CCS2

Technical specifications

• Battery capacity: 270 kWh
• Battery voltage: 600 V
• Operating weight: 16,600 - 17,900 kg
• Bucket capacity: 0.67 m³
• Breakout force, ISO (Boost): 108.5 kN
• Max speed: 21.7 km/h
• Max digging depth: 5,230 mm
• Max digging reach: 8,960 mm
• Lifting capacity (along undercarriage): 5,600 kg
• Reach / height for lifting capacity: 6 m / 1.5 m
• Tail swing radius: 1,720 mm
• Connector type: CCS2
