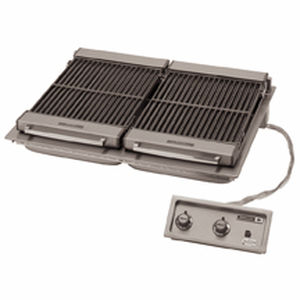

Electric grill B-506

built-incommercialstainless steel

Wells B-506 Built-In Char Broiler has a stainless steel top that makes this broiler one of the most durable in the industry. Self-cleaning elements are protected by the heavy-duty cast-iron gates and provide two heat zones for broiling flexibility. Cooking Surface 32’W x 20″D Self-Cleaning elements are positioned between the broiler grate ribs to guard against direct food contact and spatula abrasion. The elements also provide dual heating action (conductive and radiant). Temperature is regulated by two infinite controls with a positive-off position and signal lights to indicate a power-on condition. Each element frame assembly has a spring-loaded support rod to secure element when in a raised position. Lift-out, drawn drip pans with handles and removable cast iron gates allow fast and easy cleaning. Each individual control regulates one half of the grid surface area for cooking versatility. Controls are recessed in a one-piece, drawn, stainless steel panel to help prevent accidental temperature changes. A terminal block is provided for field connection to the main power supply. Each unit is provided with a grate scraper/brush. The B-506 Broiler is Underwriters Laboratories, Inc. Recognized and meets NSF International standards. A one-year warranty against defects covers parts and labor.
