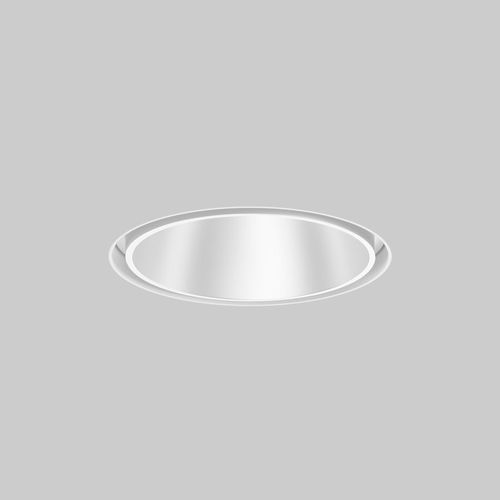

Recessed ceiling downlight SASSO 60

LEDroundIP44

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR ≤ 19
• Up to 144 lm/W
• L80 / 50000 h
• Control: DALI-2, non DIM
• Front protection: IP44, Back protection: IP20

Description
Round recessed spotlight; installation without tools in mounting set (trimless or with trim) with ball catch system; surface lacquered; installation possible in different housings; precise radiation characteristic due to high quality lens system; COB (Chip on Board) technology for maximum efficiency; no multiple shadows; efficient LEDs with very good colour rendering

Features and highlights

• Trim or trimless installation options with quick mounting set and ball catch system
• Versions for standard ceilings, exposed concrete and soft acoustic ceilings
• Available in multiple finishes/colours (traffic white, jet black, matt silver, gold dust, etc.)
• Multiple light distributions available: medium, flood, wide flood, super wide flood
• Dedicated glare control options (UGR ≤ 16 achievable depending on configuration)
• Compact recessed depth (60 mm recessed depth for many variants)
• Colour Warm Dimming and Colour Warm Dimming ranges supported in some variants

Light distribution

• Medium
• Flood
• Wide flood
• Super wide flood

Product family & variants
The SASSO 60 family includes multiple trim and trimless variants, acoustic ceiling compatible versions and several finish options. Product codes correspond to combinations of mounting set, colour, beam angle, colour temperature and control gear.

Caractéristiques / spécifications techniques

• Model family: SASSO 60
• Mounting: trim or trimless; mounting set for acoustic ceilings available
• Lamp type: integrated LED (COB)
• Nominal fixture power: approx. 10–13.1 W depending on variant
• Nominal luminous flux (range): approx. 1060–1440 lm depending on variant
• Efficiency: up to 144 lm/W (variant dependent)
• Colour rendering: CRI ≥ 90
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Lifetime: L80 / 50,000 h
• Dimming / control: non DIM or DALI-2 depending on variant
• UGR: ≤ 19 (glare control options available; some configurations achieve UGR ≤ 16)
• Front / back protection class: front IP44 / back IP20
• Recessed depth: around 60 mm for recessed variants
• Mounting compatibility: standard housings and soft acoustic ceiling solutions
