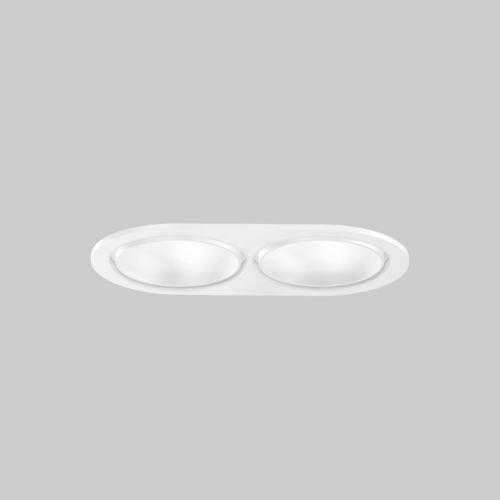

Recessed downlight SASSO 60

LEDroundIP20

Overview
Round recessed downlight with trim, designed for tool-free installation using a mounting set with ball catch system. Double-lamp configuration with COB (Chip on Board) LEDs for high efficacy and uniform light distribution.

Key features / Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR ≤ 19 (product); glare-control variant ≤ 16
• Up to 144 lm/W luminous efficacy
• Nominal lifetime: L80 / 50,000 h
• Controls: DALI-2 or non-DIM
• Ingress protection: front IP44, back IP20

Optics & light distribution

• Available beam angles: medium, flood, wide flood, super wide flood
• Precise radiation characteristic provided by high-quality lens system
• Optional glare control for improved UGR

Design & installation

• Round recessed luminaire with trim
• Mounting set with ball catch system for tool-free installation
• Surface-lacquered finish
• Double-lamp configuration (two lamps per luminaire)

Colour & finishes

• Fixture finishes: traffic white, jet black, matt silver, gold dust (examples)
• Mounting set finishes/options: traffic white, jet black, white aluminium

Additional marketing tags

• Efficiency upgrade
• New light distribution

Technical specifications

• Model family: SASSO 60
• Light source technology: COB (Chip on Board) LEDs
• Colour temperature options: 2700 K / 3000 K / 3500 K / 4000 K
• Colour rendering: CRI ≥ 90
• MacAdam initial tolerance: 2 SDCM
• Unified Glare Rating: UGR ≤ 19 (product) — glare-control variant ≤ 16
• Luminous efficacy: up to 144 lm/W
• Nominal lifetime: L80 / 50,000 h
• Controls: DALI-2 or non-DIM
• Ingress protection: front IP44, back IP20
• Mounting: recessed with mounting set and ball catch system (tool-free installation)
• Optics: high-quality lens system; beam angles: medium / flood / wide flood / super wide flood
• Configuration: double lamp (two lamps per luminaire)
• Finishes: various paint/metal finishes (traffic white, jet black, matt silver, gold dust, white aluminium)
