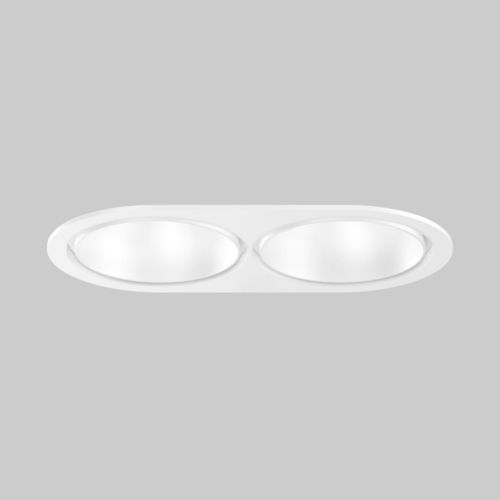

Recessed downlight SASSO 100

recessed ceilingLEDround

Quickinfo
2700 K, 3000 K, 3500 K, 4000 K

• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
• Up to 141 lm/W (depending on variant)
• L80 / 50 000 h, L85 / 50 000 h
• DALI-2 or non DIM control options
• Front IP44, back IP20

Description
Round recessed spotlight designed for tool-free installation in the supplied mounting set with a ball catch system. Lacquered surface with trim; double-lamp configuration based on COB (Chip on Board) LED modules for high luminous efficacy and uniform light distribution. High-quality lens system delivers precise radiation characteristics and minimises multiple shadows. Available with a range of beam angles and colour temperatures for professional interior lighting applications.

Key features

• Tool-free installation in mounting set with ball catch system
• Trimmed recessed downlight with two lamps (dual optical units)
• COB LED modules for high lm/W performance
• Precise beam control via high-quality optics (reduces multiple shadows)
• Multiple beam options: spot, medium, flood, wide flood
• Colour temperature options: 2700 K, 3000 K, 3500 K, 4000 K; optional warm dimming 1800–3000 K
• High colour rendering: standard CRI ≥ 90, optional CRI ≥ 95 (2 SDCM)
• Control: DALI-2 or non DIM
• Front protection IP44 suitable for humid front-facing environments; rear IP20

Light distribution

• Spot
• Medium
• Flood
• Wide flood

Colour / Finishes
Available trims and finishes: traffic white, jet black, matt silver, gold dust and white aluminium. Mounting set colour options correspond to the selected trim.

Technical specifications

• Model family: SASSO 100
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Optional Colour Warm Dimming: 1800–3000 K
• CRI: ≥ 90 standard; CRI ≥ 95 optional (2 SDCM)
• UGR classes: ≤ 13 / ≤ 16 / ≤ 19
• Photometric options: 20° spot, 31° medium, 38°/39° flood, 54°/56° wide flood
• Maximum luminous efficacy: up to 141 lm/W (product variant dependent)
• Lumen maintenance: L80 / 50 000 h; L85 / 50 000 h
• Control: DALI-2 or non DIM
• IP rating: front IP44, back IP20
• Installation: tool-free mounting set with ball catch system
• Optics: high-quality lens system for precise radiation characteristics
• Technology: COB LED modules to minimise multiple shadows and maximise efficiency
• Typical power and luminous flux depend on variant — see product codes for details
