Recessed ceiling downlight sasso 100

recessedLEDround

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
• Up to 141 lm/W
• L80 / 50000 h, L85 / 50000 h
• DALI-2, non DIM
• Front IP44, back IP20

Description

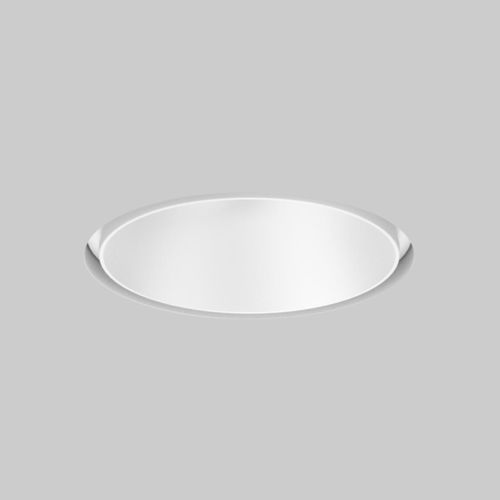

Round recessed spotlight designed for tool-free installation in the supplied mounting set (trimless or with trim) using a ball catch system. Lacquered surface finish; compatible with multiple housings and ceiling types. High-quality lens system ensures a precise radiation characteristic. COB (Chip on Board) LED technology provides high luminous efficacy and minimizes multiple shadows. Available in variants with very good colour rendering.

Light distribution

• Available radiation patterns: spot, medium, flood, wide flood, super wide flood
• Selectable beam angles (examples): ≈20° spot, ≈31° medium, ≈38°–39° flood, ≈54°–56° wide flood

Features

• Glare control options (UGR ≤ 13 / ≤ 16 / ≤ 19 depending on optics)
• 80 mm recessed depth variant available
• Quick mounting option for soft acoustic ceilings
• Colour Warm Dimming option (1800 – 3000 K)
• High CRI variants available (CRI ≥ 95, 2 SDCM optional)

Technical specifications

• Model family: SASSO 100
• Product type: round recessed downlight, single lamp
• LED technology: COB (Chip on Board)
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• Colour rendering: CRI ≥ 90 standard; CRI ≥ 95 optional
• Colour consistency: 2 SDCM (initial MacAdam)
• Luminous efficacy: up to 141 lm/W (depending on variant)
• Lumen maintenance: L80 / 50000 h, L85 / 50000 h
• Controls: DALI-2 or non-dim options
• UGR classes: ≤ 13 / ≤ 16 / ≤ 19 depending on optics
• IP rating: front IP44, back IP20
• Mounting depth: 80 mm recessed depth variant available
• Mounting options: trim, trimless, trimless for acoustic or exposed concrete ceilings, with matching mounting set
• Available beam angles: spot (≈20°), medium (≈31°), flood (≈38°–39°), wide flood (≈54°–56°)
• Fixture power examples: approx. 15.5 W, 17.3 W, 23.2 W, 25.8 W (depending on configuration)
• Typical luminous flux ranges: ~1770 lm – ~2910 lm depending on variant
• Optional finishes: traffic white, jet black, matt silver, gold dust (and other standard finishes)
• Special options: soft acoustic ceiling compatible variants, exposed concrete trimless variants
