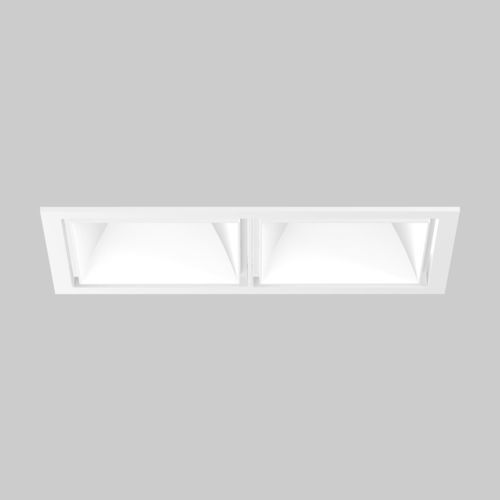

Recessed ceiling downlight SASSO 100

LEDsquareIP20

Quickinfo

• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K
• CRI ≥ 90 / 2 SDCM (initial MacAdam)
• UGR options: UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
• Up to 144 lm/W
• Lumen maintenance: L80 / 50000 h, L85 / 50000 h
• Control options: DALI-2, non DIM
• IP rating: front IP44, back IP20

Description
Square recessed spotlight designed for trim installation in a tool-free mounting set with ball catch system. Surface-lacquered fixture with trim and two integrated lamps. Precise radiation characteristic ensured by a high-quality lens system and COB (Chip on Board) LED technology for high efficacy and reduced multiple shadows. Available with optional Colour Warm Dimming and higher CRI variants.

Features

• Square recessed design
• Tool-free installation in mounting set with ball catch system
• Surface lacquered finish; with trim
• Double lamps (2 lamps)
• High-quality lens system for precise radiation characteristic
• COB (Chip on Board) LED technology for maximum efficiency
• No multiple shadows
• High efficacy and very good colour rendering
• 60 mm recessed depth
• Optional Colour Warm Dimming 1800 – 3000 K
• Optional CRI ≥ 95 (2 SDCM)

Available colours (fixture)

• traffic white
• jet black
• matt silver
• gold dust

Mounting set colours

• traffic white
• jet black
• white aluminium (anodised aluminium)

Light distribution

• spot
• medium
• flood
• wide flood

Products and codes (selection)
Status | Article number(s) | Type | Dimming
Efficiency upgrade | 048-2713017F 048-2799318 002-90766 | traffic white, Mounting set jet black, flood, 3000 K, fixture 15.5 W, 133 lm/W | non DIM
Efficiency upgrade | 048-2713017F 048-2799318 002-90767 | traffic white, Mounting set jet black, flood, 3000 K, fixture 15.5 W, 133 lm/W | DALI-2
Efficiency upgrade | 048-2713017F 048-2799318 002-90780 | traffic white, Mounting set jet black, flood, 3000 K, fixture 23.2 W, 118 lm/W | non DIM
Efficiency upgrade | 048-2713017M 048-2799318 002-90766 | traffic white, Mounting set jet black, medium, 3000 K, fixture 15.5 W, 140 lm/W | non DIM
Efficiency upgrade | 048-2713017M 048-2799318 002-90767 | traffic white, Mounting set jet black, medium, 3000 K, fixture 15.5 W, 140 lm/W | DALI-2

Technical specifications

• Model: SASSO 100 (square)
• Type: recessed downlight, 2 lamps (trim)
• Installation: tool-free in mounting set with ball catch system
• Recessed depth: 60 mm
• Light sources: integrated COB LEDs
• Colour temperatures: 2700 / 3000 / 3500 / 4000 K (optional Colour Warm Dimming 1800–3000 K)
• Colour rendering: CRI ≥ 90 (standard), CRI ≥ 95 optional (2 SDCM)
• Photometric options: spot, medium, flood, wide flood
• UGR classes: ≤10 / ≤13 / ≤16 / ≤19 (glare control available)
• Efficacy: up to 144 lm/W (dependent on variant)
• Rated luminous flux / power: variants available (fixture power examples: 15.5 W, 17.3 W, 23.2 W, 25.8 W)
• Lumen maintenance: L80 at 50,000 h and L85 at 50,000 h
• Dimming / control: DALI-2 and non-DIM variants
• Protection class / IP: front IP44, back IP20
• Finish: surface lacquered; several decorative finishes (white, black, silver, gold)
• Designed for minimised multiple shadows and precise radiation via lens system
• Typical applications: spot and accent lighting in retail, hospitality, galleries and similar interior spaces
