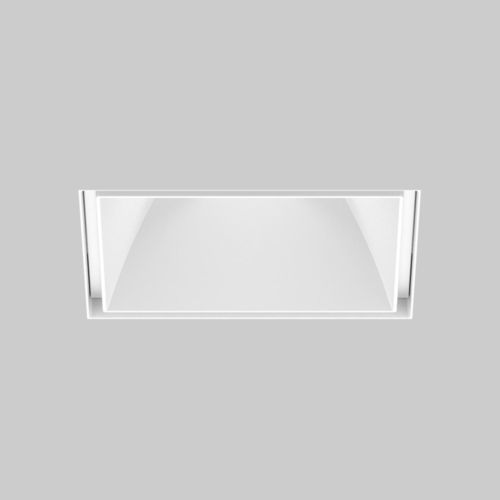

Recessed downlight SASSO 100

LEDsquareIP44

Quickinfo
2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / optional CRI ≥ 95 (2 SDCM)
UGR ≤ 10, ≤ 13, ≤ 16, ≤ 19 (variant-dependent)
Up to 144 lm/W
L80 / 50,000 h, L85 / 50,000 h
DALI-2 or non-DIM variants
Front IP44, back IP20


Description
Square recessed downlight designed for tool-free installation in a mounting set (trimless or with trim) using a ball catch system. Surface lacquered finishes available; compatible with several housings. High-quality lens optics deliver precise radiation characteristics and avoid multiple shadows. COB (Chip on Board) LED configuration provides efficient light output and uniform appearance.


Features

• Installation: tool-free installation in the mounting set (trimless or with trim) via ball catch system
• Construction: lacquered surface; compatible with various housings
• Optics: high-quality lens system with multiple beam options (spot, medium, flood, wide flood)
• Light source: COB technology for high efficacy and uniform luminous appearance
• Glare control: selectable UGR classes (UGR ≤ 10 / ≤ 13 / ≤ 16 / ≤ 19)
• Recessed depth: 60 mm recessed depth
• Colours/finishes: traffic white, jet black, matt silver, gold dust, white aluminium (and others)
• Control: DALI-2 or non-DIM depending on variant
• Colour rendering: CRI ≥ 90 standard; CRI ≥ 95 optional
• Colour temperature: 2700 K, 3000 K, 3500 K, 4000 K (Colour Warm Dimming 1800–3000 K optional)
• Protection: front IP44, rear IP20

Light distribution / Beam angles
Available beam distributions: spot (approx. 20°), medium (approx. 31°), flood (approx. 38°–39°), wide flood (approx. 54°–56°).


Technical specifications

• Model family: SASSO 100
• Mounting options: trim and trimless (mounting set options)
• Recessed depth: 60 mm
• Colour temperatures: 2700 K, 3000 K, 3500 K, 4000 K (Colour Warm Dimming 1800–3000 K optional)
• Colour rendering: CRI ≥ 90 standard; CRI ≥ 95 optional (2 SDCM)
• Luminous efficacy: up to 144 lm/W (variant-dependent)
• Lumen packages: nominal luminaire flux approx. 1,810 lm – 2,980 lm depending on configuration
• Lumen maintenance: L80 / 50,000 h, L85 / 50,000 h
• Dimming/control: DALI-2 or non-DIM variants
• UGR classes: ≤ 10, ≤ 13, ≤ 16, ≤ 19 (variant-dependent)
• Optics: high-quality lens system to ensure precise radiation and avoid multiple shadows
• LED technology: COB (Chip on Board)
• IP rating: front IP44, back IP20
• Finishes: traffic white, jet black, matt silver, gold dust, white aluminium (several finishes available)
• Typical power examples: 15.5 W, 17.3 W, 23.2 W, 25.8 W (variant-dependent)
• Typical efficacy examples: approx. 120–144 lm/W (variant-dependent)
• Available downloads: datasheets, CAD (DWG 2D), IES / LDT files and aggregated download packages per variant
