Exterior projector with die-cast aluminium body in two sizes: 280 and 360mm diameter that include cooling grill; with flat glass protective diffuser, resistant to thermal shocks and bangs; specially varnished for placing outside; Includes protection IP-65 with silicone rubber and compression gland; Stainless steel screws; Steel brackets, radial plate shape, with goniometric scale; conic reflectors made from high purity aluminium designed to obtain symmetric rotation light, ideal for illuminating details on buildings, gardens, residential areas, etc. or for illuminating publicity surfaces; can be mounted on surfaces with radial plates or on Columns. Includes as accessories anti-glare grills and anti-glare screen.
|
|
The SKY FALCON® ARC white is a compact, architectural fixture in a sturdy, weatherproof aluminium body with internal magnetic ballast. Multiple interchangeable lenses offer a wide variety of beam angles. The SKY FALCON® ARC white assures best illumination of an object. The application of optional dichroic filters anables a wide range of colour options for every situation. It is available with an optional electronic ballast by special order.
The SKY FALCON® ARC white is optional available with a mobile bracket for mobile application.
|
|
OUTMAX
Projector OUTMAX, for 1 x high-pressure sodium vapour lamp 50W with lampholder GX12-1, horizontal rotation 360°, composed of one housing, in cast aluminium, rectangular, jet black (RAL 9005), with reflector, in pure aluminium, silver anodised, narrow flood (S1), with protective glass, clear, vertical adjustment 30°/180°/30°, protection class I, protection degree IP65, with electronic control gear, with fixing rose
|
|

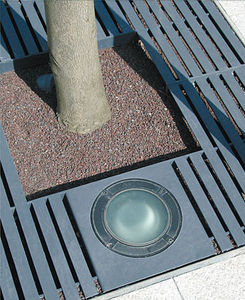

5725 Alfort - Ground embedded projector size circular Ø 280 mm, equipped with Ledmodules (LMS) and stainless steel housing, offering various options:
Choice of colour: cold or warm white, blue, yellow/amber, red, green and quadrichromy.
Choice of optics: beam angle at 8°, 36° or 8x50°.
The proyector is orientable in rotation (60°) and in inclination (± 20°).
Optional control via DALI or DMX interface.
Classified IP67
Load up to max. 5000Kg
|
|
|
|
|
|
LL LED SPOT is a LED based range of surface mounted spot lights for architectural, entertainment floodlighting and decorative and accent lighting. The range contains high-power 3W LEDs with accurate and uniform light distribution with continuously variable intensity. SPOT family is compatible with DMX. LL LED SPOT Z-Power RGB provides dynamic colour changes of full colour spectrum. LL LED SPOT Z-Power AWB provides dynamic colour changes of wide palette of natural white light.
Main applications:
- bars, restaurants, clubs, hotels, stages
- historical and modern buildings
- museums, art galleries
- sculptures and plastic arts
Technical Details
--------------------------------------------------------------------------------
Lamp
RGB: 5xR + 5xG + 5xB P3
(Red, Green and Blue)
AWB: 5xA + 5xW + 5xB P3
(Amber, White - 6300K and Blue)
Lifetime
Long lifetime 50 000 hrs
Optic
25mm standard 25°,
optional 10°, 40° and 15° x 90° - on request
Input
1 channel 24V dimming
Connection
24V DC 5m cable with 6 pin LINE connector
Net weight
1,3 kg
Dimensions (LxHx%u03A6)
115mm x 196mm x 125mm without bracket
Protection rating
IP65
Ambient temperature (Ta)
Maximum 40 °C
Cooling
Conventional
Material and finish
Housing: powder-painted anodized aluminium RAL9006
(other colours on request)
Cover: clear or frosted PMMA
Installation
Any position for ceiling, wall and surface-mounting
|
|
Uppy design Silvio De Ponte
Outdoor floodlight for halogen, discharge and high pressure sodium lamps. In die-cast and extruded aluminium and tempered glass. Finishing resistant to atmospheric phenomena. Adjustable up to 180° on the horizontal plane. Vandal-proof version available for public places. Protection degree IP65 and IP66/IP67.
Wiring
- Remote wiring (maximum distance 10 mt.) and built-in wiring.
- Low-leaking watertight supply unit with thermic protection
Construction features
- Floodlight: extruded and die-cast aluminium body; tempered transparent glass
- Supports and screw: made of galvanized steel
- In vandal-proof versions the wire is protected by a spiral, grey-coloured PVC-sheathed galvanized metal tube (FE/ZN3), equipped with a stainless-steel wire fastener
Colours
- Silver grey
- Anthracite grey
|
|
|
The SPERBER® ARC mini is one of the world’s smallest searchlights. SPERBER® ARC mini captivates by new design and compactness. The unit’s moving light beam is visible over long distances. Fully weatherproof, the SPERBER® ARC mini is ideal for fixed or portable applications, indoors and outdoors. The unit uses xenon lamps by OSRAM, giving best luminance.
|
|
|
|
|
|
The FALCON® STATIC ARC white is a manual adjustable, xenon architectural lighting fixture with a rugged, weatherproof aluminium casing. Combined with optional dichroic filters, the unit gives radiant, brilliant colours. The fixture’s xenon source guarantees high colour brilliance.
The FALCON® STATIC ARC white is also available as DMX controlled version.
Technical Details
--------------------------------------------------------------------------------
Powerclasses
1.000W / 2.000W / 3.000W / 4.000W / 7.000W / 8.000W
Housing
Non-corrosive aluminium / Stainless steel
Colour: silver-grey (RAL 9006), all RAL-tones possible
Protection rating
IP 54
Lamptype
Xenon XBO / Xstage lamp
Power supply
Built-in electronic power supply
Control
Standard: Manual; Lamp on/off
Optional: DMX 512; Lamp on/off, electronic strobe, electronic dimmer
Dimensions
1.000W/2.000W/3.000W:
713 x 515 x 448 mm (hxwxd)
28.07 x 20.28 x 17.64 inch (hxwxd)
4.000/7.000/8.000W:
1019 x 631 x 561 mm (hxwxd)
40.12 x 24.84 x 22.09 inch (hxwxd)
Application range
XXL architectural lighting
|
|
The FALCON® BEAM white is a compact, indoor/outdoor, DMX controlled, xenon beam-light with pan-and-tilt movement, electronic dimmer, electronic strobe, zoom and integrated electronic power supply. The FALCON® BEAM white is exceptionally sturdy and cost effective, providing ease of installation and long-term performance integrity. Designed for both floor-mounted and suspended/inverted use, the FALCON® BEAM white is perfect for large events and entertainment applications, including use as a skylight or long-throw wash-light.
The FALCON® BEAM white is available in two different versions for touring and permanent installation.
Light and safety shield
This optional mountable unit reduces halation and protects the heat glass cover. Furthermore it guards against contact with conducting pointsin the event of damage to the cover glass.
|
|
|
PYROS: professional projector for discharge lamps up to 250W. Maximum horizontal and vertical adjustability with diecast aluminium joints. Aiming stability and precision guaranteed by the graduated ring and mechanical position locking system. Quick IP67 electrical connection system hidden inside the fixture arm with through-wiring using 2 PG11 cord grips. Relamping is possible without the use of tools thanks to the 3 rapid knobs positioned at 120° on the fixture body. Relamping can be carried out without having to remove any of the accessories mounted.
|
|
Mini LED spot light
This small spot light is discreete and has an harmonious design.IT features a bright LED. Designed to underline the details of a façade or of a building.
|
|
|
|
|
|
SWAN is an efficient general purpose white light LED floodlight
that uses thirty-six 2,4W bright white LEDs. Fitted with the highest
precision technology and the latest software developments, the
LEDs utilized have been coupled with the most effective lenses
to give an incredibly homogeneous daylight white output. The
unit can be customized with a choice of 10°, 30° or 45° lenses to
suit additional requirements of alternative beam creations, always
preserving the highest luminous efficacy. SWAN is also available
both with 3200K and 6500K white light to meet any design
specification. The extruded aluminium body is equipped with heat
sink fins for an optimized thermal management and the enhanced
silent operation is conveyed by the use of magnetic levitation motor
fans. SWAN’s environmental impact is really small with no ultraviolet
radiation and infrared emanation, an exceptionally low power
consumption and a drastically reduced maintenance requirement,
where the life of the light source is remarkably extended compared
with any other conventional lighting equipment and no lamp
replacement is requested. Wall, ceiling or surface mounting can
be comfortably achieved by the built-in fixing yoke and the optional
display plate. The compact outline features a robust and durable
extruded aluminium housing certified to an IP65 weather protection
for the widest variety of applications such as accent, display, effect
and landscape lighting.
|
|
GEMINI PROJECTOR LED
HBLED Projector on Bracket for technical lighting IP67
Aluminium body covered by epoxy grey paint, high transparency glass and high resistance (IK10), silicon sealing gasket for high temperatures, stainless steel tightening screws.
Alternative finishing available on demand (aluminium, 316L Stainless steel, special painting any colour on demand.
RGB VERSION
Supplied with a 6x0.22mm² cable 3mt long and equipped of special connector to interface the other components of RGB piloting system.
MONOCHROME VERSION
Supplied with a 2x0.75mm² cable 1m length
All the products of this range need an external power supply available in our accessories range.
|
|
STELVIO CYM 300 uses the MSD 250 lamp, which due
to its short arc produces even more light output than from
the HQI-TS used in the Vesuvio OS CYM 250. The colour
mixing system with cyan, yellow and magenta dichroic filters
creates virtually unlimited colour hues, coupled with smooth
blends between colour changes. Colour sequences can be
selected from a pre-programmed internal controller, with
multiple unit synchronisation possible, or controlled from the
IP65 dedicated DMX controller or from any DMX512 control
system. Remote lamp ON/OFF control and dimmer/strobe/
black out functions available.
|
|
Introducing Masque, a single family of exterior lighting products to accentuate architectural details, building facades and canopy lighting.
Masque offers four scaled luminaires from the diminutive Masque I to the significant Masque IV.
|
|
|
Die cast aluminium Flood Light, complete with manoeverable 110° mini P.I.R polycarbonate detector head. The unit is weatherproof and easy to install. Each fitting is complete with 500w or 150w halogen lamp.
|
|
|
The Arida 500 and 900 Series offer two fully rotatable and adjustable luminaire housing sizes in 5" and 9" diameters. All Arida luminaires are Underwriters Laboratories and Canadian Standards approved for wet locations.
|
|
Powerful and dependable the Britelight can be configured for studio or architectural use. Build to serve Hollywood's highest standard this fixture is the choice of professionals the world over. The Britelight family of fixtures is built around four power levels and three reflector sizes. Choose the one for your application.
Features:
- Precision 20" electroformed reflector
- Motorized lamp focus (Studio version)
- Available in Studio and Architectural configuration
- ETL listed for wet locations
- Architectural version includes remote control, auto strike, and auto cool down
- Studio version includes lightweight electronic power supply with DMX remote control
|
|
Stylish and high specification 70W asymmetrical discharge floodlight, ideal for usage in all architectural, display and retail applications where a powerful yet low consumption and long lasting field of light is required.
Features:
- 70W or 150W operation (Rx7 bases)
- Asymmetrical or Symmetrical reflector
- Color frame, safety glass and 5 foot power cable standard
- Standard Black, optional White or Sliver
- Optional barndoor, clamp, safety cable and mounting kits
|
|
cornice ip55
IP 55 lighting fixture for indoor and outdoor applications in polished stainless steel, or grey or white painted. Designed to be placed on capitals and frames, takes it Rx7s 70W metal halide lamps, complete with electronic power supply unit, or linear halogen lamp R7s 200W.
|
|
|
standing floodlight for indoors or outdoors made of peraluman aluminium alloy. it features frosted or transparent glass and an IP67 protection rating. it can take halogen, fluorescent or metal halide lamps. louver and anti-glare ring (only for halopar 30 lamps) are also available. impact test resistance at IK10 20J (Joules).
|
|
Floodlights
with mounting box
Safety class IP 65 · Safety class II
· for fluorescent lamps with electronic ballast
TCA-SE · TC-TSE · TC-DSE
Glass-fibre reinforced plastic
Reflector of pure anodized aluminium
Mounting box ø 90 mm
2.5 connecting terminals
Adjustment of the burning position and relamping
without tools.
|
|
SPOT ON QUADRANT Æ 168mm
IP 67 - 960° - 20 joules - Class III -
Coasts of embedding: Overall Ø: 185,4 mm - Htor of the spot: 52,5
Htor with quadrant: 143,5
|
|
|
|
|
|
Housing/frame: In die-cast aluminium with cooling fins.
Reflector: Asymmetric, in anodized polished and hammered 99.85 aluminium, 2µ thick.
Diffuser: Tempered glass, 5 mm thick, thermal shock and impact resistant (UNI 7142 tests - British Standard 3193).
Painting: With polyester powder, black, upon chromate treatment, resistant to corrosive and saline environments.
Lampholder: In ceramics, with silver-plated contacts.
Electric gear: 230V/50Hz supply with thermal protection. Silicone wire terminated with admiralty brass clamps; fibreglass braid insulation - cross-section: 1 sqmm (up to 400W) or 2.5 sqmm (400 to 1000W). 2P+T terminal block (maximum allowed lead cross-section: 4 sqmm).
Equipment: Gasket in silicone rubber. Cable gland in f.g. nylon, Ø 1/2 gas thread. Retained steel screws with special anticorrosion and anti-gripping treatment. Bracket in steel with protractor scale. The hinge-opening front frame stays hooked to the fixture housing.
Regulations: Produced according to applicable EN60598-1 CEI 34 - 21 standards, IP65IK08 degree of protection according to EN 60529 standards. They have obtained the ENEC European certification of conformity.
Wind surface: 2400 sqcm.
|
|
A miniature mains floodlight for 20W metal halide, halogen capsule lamps or PCB 3 LEDs 1W with a selection of glasses and attachments
Ideal for precise lighting of sculptures, plants, trees or signage, or the emphasis of architectural detail
Sealed to IP65
Glasses and attachments can be used in combination for a variety of beam distributions
Surface mounting
Large base houses control gear
Electronic gear in 20W version
Choice of reflectors, (intensive): 8° (extensive): 18°
|
|
|
PYROS: professional projector for discharge lamps up to 250W. Maximum horizontal and vertical adjustability with diecast aluminium joints. Aiming stability and precision guaranteed by the graduated ring and mechanical position locking system. Quick IP67 electrical connection system hidden inside the fixture arm with through-wiring using 2 PG11 cord grips. Relamping is possible without the use of tools thanks to the 3 rapid knobs positioned at 120° on the fixture body. Relamping can be carried out without having to remove any of the accessories mounted.
|
|
|
|
