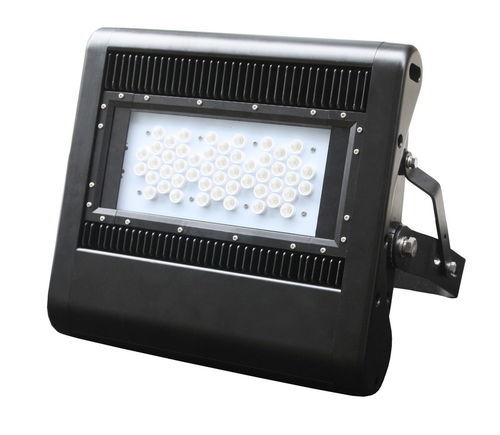

IP65 floodlight JNFL12-100S-5000-A3-DIM

LEDurbanfor parking lot

100 Watt LED flood light for outdoor and industrial use with IP65 protection. Equipped with Philips Lumileds LEDs and a Meanwell HLG-100H driver, the fixture is dimmable and engineered to replace 250 W metal halide/HID/HPS installations while providing high lumen output at cool white 5000 K. Suitable for façade lighting, perimeter and yard illumination, exterior signage and general outdoor area lighting.

Technical specifications

• Product SKU: JNFL12-100S-5000-A3-DIM
• Power Consumption: 100 W
• System Power: 110 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-100H
• Total Lumens Output: 15,200 lm
• Colour Temperature: 5000 K (cool white)
• Colour Rendering Index (CRI): >70
• Beam Angle (single): 40° (square beam: 40x40°)
• Beam Angle Square: 40x40°
• Number of LED Modules: 1 module
• Dimming Capability: Dimmable
• Power Factor: >0.95
• IP Rating: IP65
• IK Impact Rating: IK07
• Housing Colour: Black
• Mounting Type: Adjustable Bracket
• Fixture Height: 366 mm
• Fixture Length: 387 mm
• Fixture Width: 91 mm
• Product Weight (net): 5 kg
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years

Packaging & Shipping

• Net Weight (per product): 5 kg
• Export Carton Dimensions: 460 x 450 x 380 mm
• Products per Carton: 2
• Export Carton Gross Weight: 8 kg
• Fixture Height (packed): 366 mm
• Fixture Width (packed): 91 mm
• Fixture Length (packed): 387 mm
