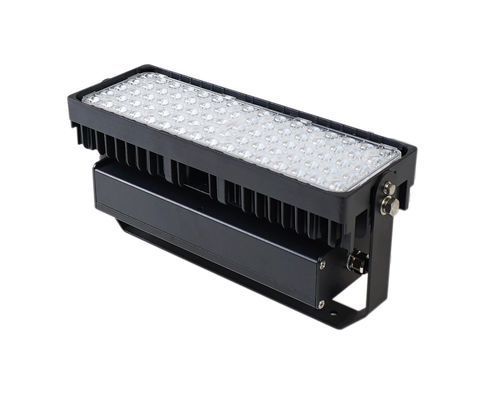

IP65 floodlight JNFLM12-100S-6500-A6-DIM
LEDcommercialfor sports fields

IP65 floodlight - JNFLM12-100S-6500-A6-DIM - JNLED - LED / commercial / for sports fields
IP65 floodlight - JNFLM12-100S-6500-A6-DIM - JNLED - LED / commercial / for sports fields
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
commercial, for sports fields, industrial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
rectangular
Beam type
wall washer
Dimmable
dimmable
Other characteristics
adjustable, IK08
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 100 W
(0.14 hp)

Min.: 100 W
(0.14 hp)

Luminous flux

Max.: 13,000 lm

Min.: 13,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

100W modular LED flood light in a 1×2 module configuration providing high output and replacing traditional 250 W metal halide/HID/HPS luminaires. The luminaire uses original Philips Lumileds (Luxeon TX) LEDs with Meanwell driver(s), is dimmable and sealed to IP65 for outdoor use.

Key specifications
  • Product SKU: JNFLM12-100S-6500-A6-DIM
  • Power Consumption: 100 W
  • System Power: 106 W
  • Input Voltage: 100-277V
  • Input Frequency: 50/60 Hz
  • Beam Angle: 40×100°
  • IP Rating: IP65
  • IK Impact Rating: IK08
  • Color Rendering Index (CRI): >80
  • LED Type: Philips Lumileds (Luxeon TX)
  • Total Lumens Output: 13000 lm
  • Colour Temperature (CCT): 6000 K (cool white)
  • Dimming Capability: Dimmable
  • Housing Colour: Black
  • Housing Material: Die-cast Aluminum
  • Power Factor: >0.95
  • LED Driver Brand: Meanwell driver(s)
  • Number of LED Modules: 1 module
  • Mounting Type: Adjustable Bracket Mount
  • Fixture Dimensions (HxLxW): 113 mm × 326 mm × 128 mm
  • Product / Net Weight: 6 kg
  • Export Carton Dimensions (mm): 400 × 360 × 230 mm
  • Products per Carton: 1
  • Export Carton Gross Weight: 8 kg
  • Environmental / Working Temperature Range: -20°C ~ 45°C
  • Working Humidity Range: 10% - 90% RH
  • Lifespan: 50,000 hours
  • Warranty Period: 5 years


Applications
  • Outdoor industrial and commercial floodlighting
  • Facade, signage and architectural accent lighting
  • Warehouses, loading bays and logistics areas
  • Sports facilities, yards and perimeter lighting


Installation and maintenance
  • Adjustable bracket mount for aiming and tilt adjustment
  • Sealed IP65 housing suitable for outdoor exposure
  • Compatible with dimming controls; integrated Meanwell driver(s)
  • Operating temperature -20°C to 45°C; humidity 10%–90% RH
  • Expected lifespan 50,000 hours; 5-year warranty


Compliance and packaging
  • IP65 protection, IK08 impact resistance
  • Fixture dimensions and weights provided for logistics planning
  • Packaged one unit per export carton (400×360×230 mm), gross weight 8 kg
