IP65 floodlight JNFLM18/6-400S-5000-A6-DIM

LEDindustrialoutdoor

Product Overview

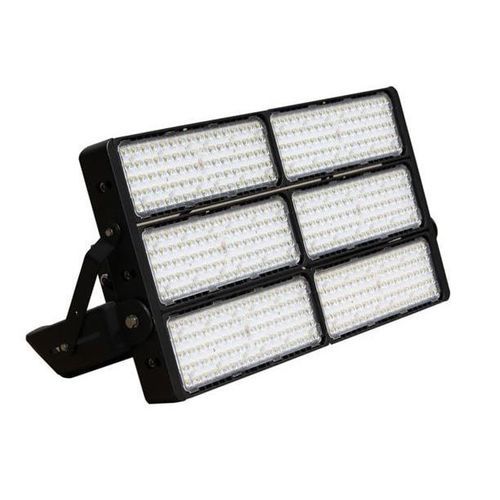

400W modular LED flood light, model JNFLM18/6-400S-5000-A6-DIM. Configuration 1×6 modules with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable. Beam angle 40×100°. IP65 ingress protection. Designed to replace 1000W metal halide/HID/HPS fixtures for industrial and outdoor area lighting. Die-cast aluminum housing with adjustable bracket for aiming.

Features

• Power consumption: 400W (system power: 406W)
• Configuration: 1×6 modules
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• Dimming: Yes (dimmable)
• Beam angle: 40×100°
• Total luminous flux: 52,000 lm
• Colour temperature: 6000 K (cool white)
• CRI: >80
• IP rating: IP65
• IK rating: IK08
• Power factor: >0.95
• Input voltage: 100–277V
• Input frequency: 50/60 Hz
• Housing: die-cast aluminum, black
• Mounting: adjustable bracket mount
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Product Specifications (table)
Product SKU: JNFLM18/6-400S-5000-A6-DIM
Power Consumption: 400 W
System Power: 406 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle: 40x100°
IP Rating: IP65
Colour Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52,000 lm
Colour Temperature: 6000 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Number of LED Modules: 1×6
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable bracket mount
Fixture Height: 113 mm
Fixture Length: 326 mm
Fixture Width: 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Lifespan: 50,000 hours
Warranty Period: 5 years

Packaging & Shipping (key items)
Product Dimensions (mm): 326 × 128 × 113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400 × 360 × 230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• SKU: JNFLM18/6-400S-5000-A6-DIM
• Power: 400 W (system 406 W)
• Voltage: 100–277V
• Frequency: 50/60 Hz
• Beam angle: 40×100°
• Lumen output: 52,000 lm
• CCT: 6000 K (cool white)
• CRI: >80
• LED: Philips Lumileds (Luxeon TX)
• Driver: Meanwell
• Dimmable: Yes
• IP rating: IP65
• IK rating: IK08
• Housing: Die-cast aluminum, black
• Mounting: Adjustable bracket
• Dimensions (H×L×W): 113 × 326 × 128 mm
• Weight: 17.2 kg
• Operating temp: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
