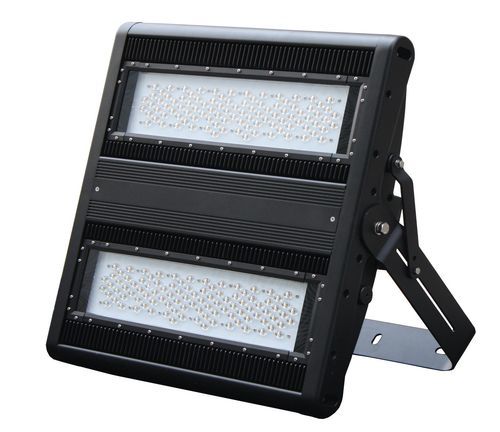

IP65 floodlight JNFL25-1800S-5000-A4-ND

LEDindustrialoutdoor

Short description
High-output LED flood light JNFL25-1800S delivering 211000 lm with Philips Lumileds chips and Meanwell HLG-1000H driver. System power 1800 W, power consumption 1700 W. 5000 K cool white, 60x60° square beam, non-dimmable, IP65 for outdoor use. Designed to replace 2500 W metal halide/HID/HPS in industrial and large-area applications.

Features

• Philips Lumileds LEDs for stable lumen output
• Meanwell HLG-1000H LED driver
• Non-dimmable for simplified control
• IP65-rated housing for outdoor installations
• 60x60° square beam via dual-lens/PCB design
• High lumen output suitable to replace 2500 W metal halide/HID/HPS

Product Specifications (table)
Product SKU : JNFL25-1800S-5000-A4-ND
System Power : 1800 W
Power Consumption : 1700 W
Input Voltage : 100-305 V
Total Lumens Output : 211000 lm
Color Temperature : 5000 K (cool white)
Beam Angle (°) : 60x60°
IP Rating : IP65
LED Type : Philips Lumileds
LED Driver Brand : Meanwell HLG-1000H
CRI : >70
Power Factor : >0.95
IK Rating : IK07
Dimming Capability : Non-dimmable
Number of LED Modules : 1 module
Fixture Dimensions (HxLxW) : 161 mm x 788 mm x 665 mm
Product Weight : 42 kg
Warranty Period : 5 years
Lifespan : 50,000 hours
Operating Temp Range : -20°C to 45°C
Operating Humidity Range : 10%–90% RH
Mounting Type : Adjustable bracket

Packaging & Shipping
Net Weight (kg) : 42 kg
Export Carton Dimensions (mm) : 950 x 880 x 270
Products per Carton : 1
Export Carton Gross Weight (kg) : 41 kg

Technical specifications

• System Power: 1800 W
• Power Consumption: 1700 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Total Lumens Output: 211000 lm
• Colour Temperature: 5000 K (cool white)
• CRI: >70
• Beam Angle: 60x60° (square)
• IK Rating: IK07
• IP Rating: IP65
• Dimming: Non-dimmable
• Power Factor: >0.95
• Warranty: 5 years
• Lifespan: 50,000 hours
• Operating Temp Range: -20°C to 45°C
• Operating Humidity Range: 10%–90% RH
• Mounting: Adjustable bracket
• Fixture Dimensions (HxLxW): 161 mm x 788 mm x 665 mm
• Product Weight: 42 kg
