IP65 floodlight JNFLM20-600S-5000-A6-ND
LEDindustrialfor sports fields

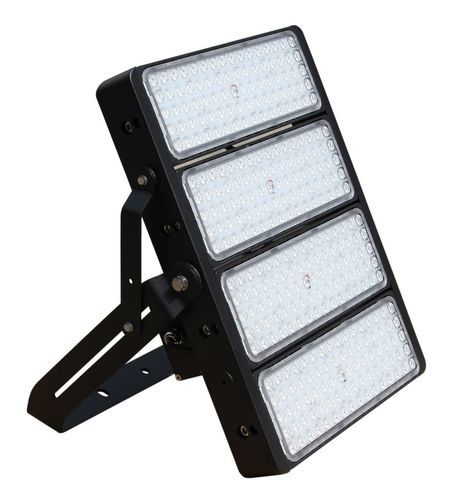

IP65 floodlight - JNFLM20-600S-5000-A6-ND - JNLED - LED / industrial / for sports fields
IP65 floodlight - JNFLM20-600S-5000-A6-ND - JNLED - LED / industrial / for sports fields
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
industrial, for sports fields
Interior/exterior use
outdoor
Type
surface-mounted
Shape
rectangular
Beam type
wash, wall washer
Dimmable
not dimmable
Other characteristics
adjustable, IK08
Height

Min.: 113 mm
(4 in)

Max.: 113 mm
(4 in)

Length

Min.: 326 mm
(13 in)

Max.: 326 mm
(13 in)

Width

Min.: 128 mm
(5 in)

Max.: 128 mm
(5 in)

Power

Min.: 606 W
(0.82 hp)

Max.: 606 W
(0.82 hp)

Luminous flux

Min.: 78,000 lm

Max.: 78,000 lm

Color temperature

Min.: 6,000 K

Max.: 6,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Description

Product overview
600W modular LED flood light configured as 2×4 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable (page short description). IP65-rated housing for outdoor installations. Designed to replace 1000W metal halide/HID/HPS fixtures.

Key features
  • Power: 600 W (system power 606 W)
  • Total luminous flux: 78,000 lm
  • Color temperature: 6000 K (cool white)
  • Beam angle: 40×100° (asymmetric)
  • LED: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • CRI: >80
  • Ingress protection: IP65
  • Impact rating: IK08
  • Housing: die-cast aluminum, black
  • Operating temperature: -20°C to 45°C
  • Lifespan: 50,000 hours
  • Warranty: 5 years


Technical specifications
  • Product SKU: JNFLM20-600S-5000-A6-ND
  • Input voltage: 100–277 V
  • Input frequency: 50/60 Hz
  • Power factor: >0.95
  • System power: 606 W
  • Number of LED modules: 1 module (page shows configuration 2×4)
  • Fixture dimensions (L×W×H): 326 × 128 × 113 mm
  • Product weight: 17.2 kg
  • Working humidity: 10%–90% RH
  • Working temperature: -20°C ~ 45°C
  • Dimming: Non-dimmable (product short description). Some technical sheets list dimmable — verify with supplier before ordering.


Applications
  • Outdoor area and perimeter lighting
  • Industrial yards, logistics sites and warehouses
  • Façade and architectural floodlighting
  • Sports fields and stadium perimeter lighting
  • Ports, shipyards and heavy-industry exteriors


Installation & mounting
  • Adjustable bracket mount for aiming and tilt
  • Electrical connection: 100–277V — installation by qualified electrician
  • Ensure adequate ventilation and secure mounting on stable structures


Packaging & shipping
  • Product dimensions (mm): 326 × 128 × 113
  • Net weight: 17.2 kg
  • Export carton dimensions (mm): 400 × 360 × 230
  • Products per carton: 1
  • Export carton gross weight: 8 kg


Warranty & maintenance
  • Standard warranty: 5 years
  • Recommended: periodic cleaning of optic and routine electrical inspection
  • For dimming capability and final electrical configuration, confirm driver specification with supplier
