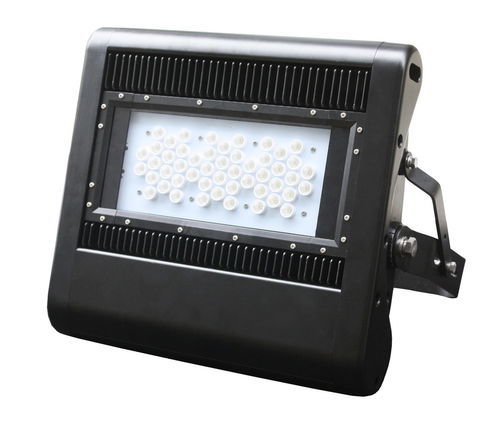

IP65 floodlight JNFL12 series

LEDindustrialfor parking lot

Compact 100 W LED flood light for outdoor use. Dimmable and IP65-rated, designed as a replacement for 250 W metal halide/HID/HPS luminaires. Single-module PCB and single-lens configuration with an adjustable mounting bracket for aimed illumination.

Technical specifications

• Product SKU: JNFL12-100S-5000-A5-DIM
• Power Consumption: 100 W
• System Power: 110 W
• Input Voltage: 100-305 V
• Beam Angle: 60°
• Beam Angle (square): 60×135°
• IP Rating: IP65
• IK Impact Rating: IK07
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumens Output: 15,200 lm
• Colour Temperature: 5000 K
• Dimming Capability: Dimmable
• LED Driver Brand: Meanwell HLG-100H
• Power Factor: >0.95
• Number of LED Modules: 1 module
• Housing Colour: Black
• Mounting Type: Adjustable Bracket
• Fixture Height: 366 mm
• Fixture Length: 387 mm
• Fixture Width: 91 mm
• Product Weight: 5 kg
• Working Temperature Range: -20°C ~ 45°C
• Environmental Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years
• Packaging - Export Carton Dimensions: 460 x 450 x 380 mm
• Packaging - Products per Carton: 2
• Packaging - Export Carton Gross Weight: 8 kg

Applications

• Outdoor area and site lighting
• Façade and architectural illumination
• Car parks and loading yards
• Sports grounds and industrial facilities
• Ports, logistics and perimeter security lighting

Installation & maintenance

• Adjustable mounting bracket for aimed installation
• Wide input voltage (100-305 V) for flexible supply conditions
• Single-module design simplifies installation and servicing
• Compatible with suitable dimming systems; check driver/dimmer compatibility
• Operating range: -20°C to 45°C; humidity 10%–90% RH

Compliance & warranty

• Ingress protection: IP65; Impact rating: IK07
• Rated lifetime: 50,000 hours
• Warranty: 5 years
• Packaging: export carton 460 x 450 x 380 mm, 2 units per carton, gross weight 8 kg
