IP65 floodlight JNFL25-1800S-5000-A2-ND

LEDindustrialoutdoor

Description

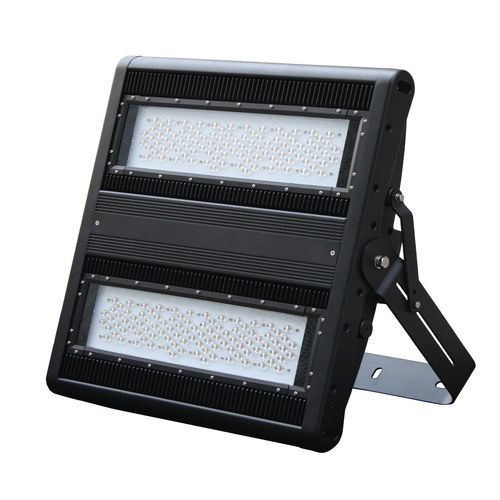

High-power LED flood light designed for industrial and outdoor applications. System power 1800 W (power consumption: 1700 W). Fitted with Philips Lumileds LEDs and Meanwell HLG-1000H driver. Non-dimmable. IP65 ingress protection. Suitable as a retrofit replacement for 2500 W metal halide/HID/HPS installations.

Features

• Cool white, 5000K color temperature
• 30x30° square dual-lens beam
• Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Non-dimmable
• IP65 ingress protection
• IK07 impact rating
• Power factor >0.95
• Expected lifespan: 50,000 hours
• 5-year warranty

Product Specifications
Product SKU: JNFL25-1800S-5000-A2-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100-305 V
Beam Angle (square): 30x30°
IP Rating: IP65
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
Color Temperature (K): 5000 K
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period: 5 years
Number of LED Modules: 1 module
Fixture Dimensions (HxLxW mm): 161 x 788 x 665
Product Weight: 42 kg
Operating Temperature Range: -20°C ~ 45°C
Operating Humidity Range: 10%-90% RH
Mounting Type: Adjustable bracket

Packaging & Shipping
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950 x 880 x 270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg

Technical specifications

• SKU: JNFL25-1800S-5000-A2-ND
• System Power: 1800 W
• Power Consumption: 1700 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-1000H
• Total Lumens: 211000 lm
• Colour Temperature: 5000 K
• Beam Angle (square): 30x30°
• IP Rating: IP65
• IK Rating: IK07
• CRI: >70
• Power Factor: >0.95
• Dimming: Non-dimmable
• Fixture Dimensions (HxLxW mm): 161 x 788 x 665
• Product Weight: 42 kg
• Operating Temperature: -20°C ~ 45°C
• Operating Humidity: 10%-90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
