IP65 floodlight JNFLM20-600S-6500-A1-DIM

LEDoutdoorsurface-mounted

Short description

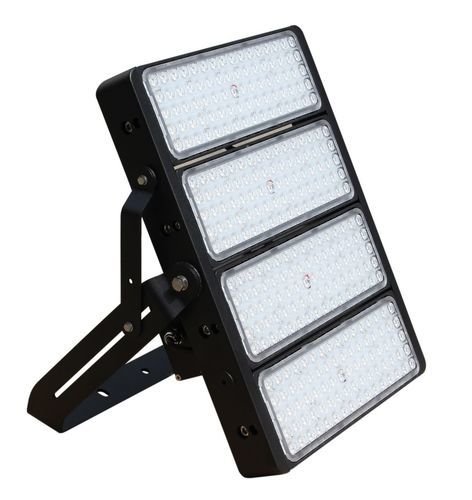

600W modular LED flood light, configuration 2×4 modules, equipped with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable. IP65. Designed to replace 1000W metal halide / HID / HPS fixtures.

Features

• Configuration: 2×4 modules
• Original Philips Lumileds (Luxeon TX)
• Meanwell driver(s)
• Dimmable
• Ingress Protection: IP65
• Replaces traditional 1000W metal halide / HID / HPS fixtures

Specification Details
Modular LED flood light, 600W nominal power (system power 606 W), beam angle 15×15°, color temperature 6000K, CRI >80, IP65, IK08, lifespan ~50,000 hours. Operating temperature -20°C to 45°C.

Product Specifications (table)
Product SKU : JNFLM20-600S-6500-A1-DIM
Power Consumption : 600 W
Input Voltage : 100-277V
Beam Angle (°) : 15×15°
IP Rating : IP65
Color Rendering Index : >80
LED Type : Philips Lumileds (Luxeon TX)
Total Lumens Output : 78,000 lm
Color Temperature (K) : 6000 K
IK Impact Rating : IK08
Dimming Capability : Dimmable
Housing Colour : Black
Power Factor : >0.95
Input Frequency : 50/60 Hz
Housing Material : Die-cast Aluminum
Warranty Period (Years) : 5
System Power : 606 W
Number of LED Modules : 8 modules
Beam Angle Square : 15×15°
Environmental Temperature Range : -20°C ~ 45°C
Mounting Type : Adjustable Bracket Mount
Fixture Height (mm) : 113 mm
Fixture Length (mm) : 326 mm
Fixture Width (mm) : 128 mm
Product Weight : 17.2 kg
LED Driver Brand : Meanwell driver(s)
Working Humidity Range : 10% - 90% RH
Lifespan (Hours) : 50,000 hours

Packaging & Shipping (table)
Product Dimensions (mm) : 326×128×113 mm
Net Weight (kg) : 17.2 kg
Export Carton Dimensions (mm) : 400×360×230 mm
Products per Carton : 1
Export Carton Gross Weight (kg) : 8 kg
Fixture Height (mm) : 113 mm
Fixture Width (mm) : 128 mm
Fixture Length (mm) : 326 mm

Technical specifications

• SKU: JNFLM20-600S-6500-A1-DIM
• Power Consumption: 600 W
• Input Voltage: 100-277V
• Beam Angle: 15×15°
• IP Rating: IP65
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens: 78,000 lm
• Colour Temperature: 6000 K
• IK Rating: IK08
• Dimming: Dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• Warranty: 5 years
• System Power: 606 W
• Number of LED Modules: 8 modules
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Fixture Dimensions (L×W×H): 326×128×113 mm
• Product Weight: 17.2 kg
• Mounting Type: Adjustable Bracket Mount
