IP65 floodlight JNFLM20-600S-6500-A6-ND
LEDoutdoornot dimmable

IP65 floodlight - JNFLM20-600S-6500-A6-ND - JNLED - LED / outdoor / not dimmable
IP65 floodlight - JNFLM20-600S-6500-A6-ND - JNLED - LED / outdoor / not dimmable
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Interior/exterior use
outdoor
Dimmable
not dimmable
Other characteristics
adjustable, IK08
Height

Min.: 113 mm
(4 in)

Max.: 113 mm
(4 in)

Length

Min.: 326 mm
(13 in)

Max.: 326 mm
(13 in)

Width

Min.: 128 mm
(5 in)

Max.: 128 mm
(5 in)

Power

Min.: 600 W
(0.82 hp)

Max.: 600 W
(0.82 hp)

Luminous flux

Min.: 78,000 lm

Max.: 78,000 lm

Color temperature

Min.: 6,000 K

Max.: 6,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Description

Short description

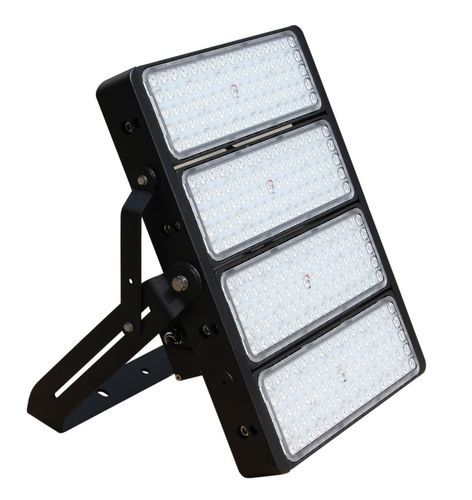

600W modular LED flood light, configuration 2×4 modules, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable (ND). IP65, suitable for outdoor use. Designed to replace 1000 W metal halide/HID/HPS.

Features
  • Configuration: 2×4 modules
  • LEDs: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell
  • Beam angle: 40×100°
  • Color temperature: 6000 K (cool white)
  • CRI: >80
  • IP65 rated for outdoor use
  • IK08 impact resistance
  • Adjustable bracket mount

Product specifications
Product SKU: JNFLM20-600S-6500-A6-ND
Power Consumption: 600 W (System power: 606 W)
Input Voltage: 100-277 V
Beam Angle: 40×100°
IP Rating: IP65
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
Total Luminous Flux: 78,000 lm
Color Temperature: 6000 K
IK Rating: IK08
Dimming Capability: Non-dimmable (ND)
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast aluminum
Warranty Period: 5 years
Number of LED Modules: 8 modules (2×4 configuration)
Operating Temperature Range: -20°C to 45°C
Working Humidity Range: 10%–90% RH
Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell
Lifespan: 50,000 hours

Technical specifications
  • Power: 600 W
  • Input voltage: 100–277 V
  • Beam angle: 40×100°
  • IP rating: IP65
  • CRI: >80
  • LED: Philips Lumileds (Luxeon TX)
  • Lumens: 78,000 lm
  • Colour temperature: 6000 K
  • IK rating: IK08
  • Dimming: Non-dimmable (ND)
  • Housing: Die-cast aluminum, black
  • Dimensions: 326 × 128 × 113 mm
  • Weight: 17.2 kg
  • Operating temp: -20°C to 45°C
  • Lifespan: 50,000 h
