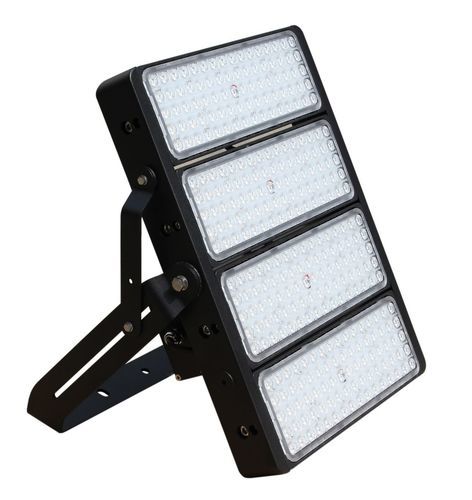

IP65 floodlight JNFLM20-600S-5000-A8-ND
LEDindustrialoutdoor

IP65 floodlight - JNFLM20-600S-5000-A8-ND - JNLED - LED / industrial / outdoor
IP65 floodlight - JNFLM20-600S-5000-A8-ND - JNLED - LED / industrial / outdoor
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Shape
square
Dimmable
not dimmable
Other characteristics
high-intensity, IK08, adjustable
Height

Min.: 113 mm
(4 in)

Max.: 113 mm
(4 in)

Length

Min.: 326 mm
(13 in)

Max.: 326 mm
(13 in)

Width

Min.: 128 mm
(5 in)

Max.: 128 mm
(5 in)

Power

Min.: 600 W
(0.82 hp)

Max.: 600 W
(0.82 hp)

Luminous flux

Min.: 78,000 lm

Max.: 78,000 lm

Color temperature

Min.: 6,000 K

Max.: 6,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Description

Short description
600W modular LED flood light with 2×4 module configuration, Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65 rated. Designed to replace 1000W metal halide/HID/HPS luminaires in industrial and outdoor applications.

Features
  • Configuration: 2×4 LED modules (8 modules)
  • LEDs: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • Ingress protection: IP65
  • Beam angle: 140×140° (square beam)
  • Color temperature: 6000 K (cool white)
  • High lumen output: 78,000 lm
  • Housing: die-cast aluminium, black
  • Impact rating: IK08
  • Warranty: 5 years


Product Specifications
SKU: JNFLM20-600S-5000-A8-ND
Power consumption: 600 W
System power: 606 W
Input voltage: 100–277 V
Input frequency: 50/60 Hz
Beam angle: 140×140°
IP rating: IP65
Color rendering index (CRI): >80
LED type: Philips Lumileds (Luxeon TX)
Total luminous flux: 78,000 lm
Color temperature: 6000 K
IK impact rating: IK08
Dimming capability: Non-dimmable
Housing colour: Black
Power factor: >0.95
Housing material: Die-cast aluminium
Number of LED modules: 8 modules
Lifespan: 50,000 hours
Operating temperature: -20°C to 45°C
Operating humidity: 10%–90% RH
Mounting: Adjustable bracket mount
Fixture dimensions (L×W×H): 326 × 128 × 113 mm
Product weight: 17.2 kg


Packaging & Shipping
Product dimensions (mm): 326 × 128 × 113 mm
Net weight (kg): 17.2 kg
Export carton dimensions (mm): 400 × 360 × 230 mm
Products per carton: 1
Export carton gross weight (kg): 8 kg


Technical specifications
SKU: JNFLM20-600S-5000-A8-ND
Power: 600 W (system 606 W)
Voltage: 100–277 V
Frequency: 50/60 Hz
LED: Philips Lumileds (Luxeon TX)
Driver: Meanwell driver(s)
Luminous flux: 78,000 lm
Color temperature: 6000 K
CRI: >80
Beam angle: 140×140° (square)
Mounting: Adjustable bracket mount
Housing: Die-cast aluminium, black
IK rating: IK08
IP rating: IP65
Power factor: >0.95
Operating temp: -20°C to 45°C
Operating humidity: 10%–90% RH
Lifespan: 50,000 hours
Warranty: 5 years
Dimensions (mm): 326 × 128 × 113
Weight: 17.2 kg
