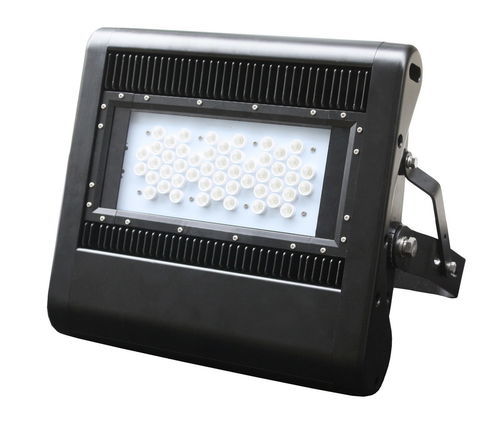

IP65 floodlight JNFL12-100S-5000-A4-DIM

LEDindustrialcommercial

Overview
Outdoor LED floodlight designed to replace 250 W metal halide/HID/HPS luminaires, providing weatherproof operation and reduced energy consumption. Suitable for industrial and commercial exterior lighting applications.

Features

• Dimmable LED floodlight with compatible driver(s)
• Original Philips Lumileds LEDs for consistent optical performance
• Meanwell HLG-100H LED driver
• IP65 rated weatherproof housing
• Square beam angle 60x60° (single lens)
• Cool white colour temperature (5000 K)
• Total lumen output 15,200 lm
• High power factor >0.95 and IK07 impact rating
• Rated lifespan 50,000 hours and 5-year warranty

Packaging & Shipping

• Net weight: 5 kg
• Export carton dimensions: 460 x 450 x 380 mm
• Products per carton: 2
• Export carton gross weight: 8 kg

Technical specifications

• Product SKU: JNFL12-100S-5000-A4-DIM
• Power Consumption: 100 W
• System Power: 110 W
• Input Voltage: 100-305 V
• Beam Angle (°): 60°
• Beam Angle Square: 60x60°
• IP Rating: IP65
• IK Impact Rating: IK07
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-100H
• Total Lumens Output: 15,200 lm
• Colour Temperature (K): 5000
• Dimming Capability: Dimmable
• Power Factor: >0.95
• Number of LED Modules: 1 module
• Mounting Type: Adjustable Bracket
• Fixture Height: 366 mm
• Fixture Length: 387 mm
• Fixture Width: 91 mm
• Product Weight: 5 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years
