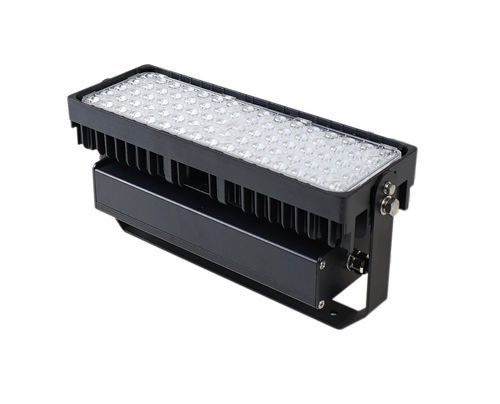

IP65 floodlight JNFLM12-100S-6500-A8-DIM

LEDfor sports fieldsindustrial

Product overview

Modular 100W cool-white LED floodlight JNFLM12-100S-6500-A8-DIM delivering approximately 13,000 lm with a square 140×140° beam. Designed for outdoor use with IP65 and IK08 protection. Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Intended as a retrofit replacement for 150–175W metal halide/HID/HPS fixtures and supports dimmable operation over 100–277V.

Key points

• Modular configuration: 1×2 modules.
• Dimmable LED floodlight suitable for outdoor/IP65 environments.
• Retrofit replacement for 150–175W HID/HPS luminaires.

Technical specifications

• Product SKU: JNFLM12-100S-6500-A8-DIM
• Denomination: JNFLM12 series
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Total Lumens Output: 13,000 lm
• Color Temperature (CCT): 6000 K (cool white)
• Color Rendering Index (CRI): >80
• Power Factor: >0.95
• Beam Angle (square): 140×140°
• IK Impact Rating: IK08
• Dimming Capability: Dimmable
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (HxLxW mm): 113 mm × 326 mm × 128 mm
• Fixture Height: 113 mm
• Fixture Length: 326 mm
• Fixture Width: 128 mm
• Product Dimensions (mm): 326 × 128 × 113 mm
• Net Weight: 6 kg
• Export Carton Dimensions (mm): 400 × 360 × 230
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years

Applications

• Area and site lighting (yards, loading areas)
• Facade and architectural wash lighting
• Perimeter, security and industrial site illumination
• Sports and recreational area lighting (training, small courts)
• Signage and billboard illumination

Installation & warranty

• Adjustable bracket for aiming and mounting flexibility
• Compatible with standard 100–277V supplies; requires suitable dimming control for driver(s)
• Robust die-cast aluminium housing with IK08 impact resistance
• Operating temperature -20°C to 45°C; humidity 10%–90% RH
• Lifespan approx. 50,000 hours and 5-year warranty
