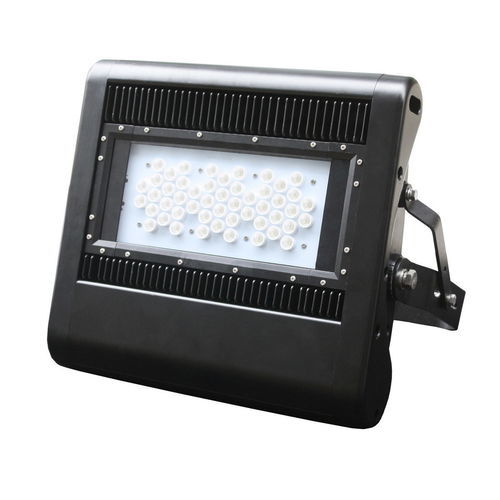

IP65 floodlight JNFL12-100S-5000-A6-DIMLEDoutdoorsurface-mounted
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Interior/exterior use
- outdoor
- Type
- surface-mounted
- Shape
- rectangular
- Dimmable
- dimmable
- Other characteristics
- IK07
- Height
Min.: 366 mm
(14 in)Max.: 366 mm
(14 in)- Length
Min.: 387 mm
(15 in)Max.: 387 mm
(15 in)- Width
Min.: 91 mm
(4 in)Max.: 91 mm
(4 in)- Power
Min.: 100 W
(0.14 hp)Max.: 100 W
(0.14 hp)- Luminous flux
Min.: 15,200 lm
Max.: 15,200 lm
- Color temperature
Min.: 5,000 K
Max.: 5,000 K
- Color rendering index (CRI)
Min.: 70 unit
Max.: 100 unit
Description
100 Watt LED flood light delivering cool white 5000K light using Philips Lumileds and a Meanwell driver. The luminaire is dimmable, IP65 rated and designed as a retrofit alternative to 250 W metal halide / HID / HPS fixtures.
Technical specifications
Packaging & shipping
Technical specifications
- Product SKU: JNFL12-100S-5000-A6-DIM
- Power Consumption (W): 100
- Input Voltage: 100-305 V
- Beam Angle (°): 85°
- Beam Angle Square: 85x135°
- IP Rating: IP65
- IK Impact Rating: IK07
- Colour Rendering Index (CRI): >70
- LED Type: Philips Lumileds
- LED Driver Brand: Meanwell HLG-100H
- Total Lumens Output: 15200 lm
- Colour Temperature (K): 5000
- Dimming Capability: Dimmable
- Power Factor: >0.95
- System Power: 110 W
- Number of LED Modules: 1 module
- Housing Colour: Black
- Mounting Type: Adjustable Bracket
- Fixture Height: 366 mm
- Fixture Length: 387 mm
- Fixture Width: 91 mm
- Product Weight: 5 kg
- Environmental / Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 90% RH
- Lifespan: 50,000 hours
Packaging & shipping
- Export Carton Dimensions (mm): 460 x 450 x 380
- Products per Carton: 2
- Export Carton Gross Weight: 8 kg
