IP65 floodlight JNFLM18/6-400S-5000-A5-DIM

LEDindustrialoutdoor

Short description

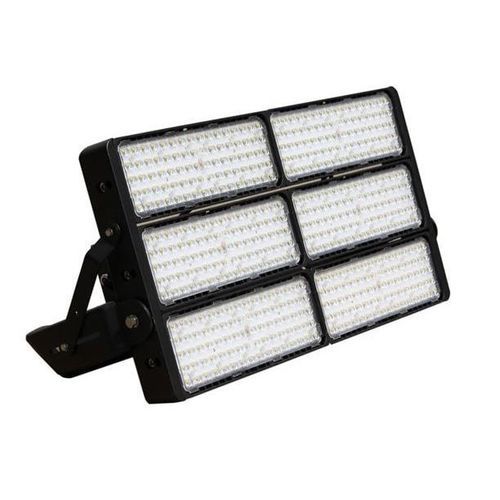

400W modular LED flood light in a 1×6 module configuration, fitted with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65-rated, replaces 1000W metal halide/HID/HPS luminaires and is designed for industrial outdoor lighting applications.

Features
High-output modular LED flood light with optimized 30×100° asymmetric optics for targeted area illumination. Die-cast aluminum housing with IK08 impact resistance, power factor >0.95 and CRI >80. Long service life (50,000 hours) and 5-year warranty.

Product Specifications

• SKU: JNFLM18/6-400S-5000-A5-DIM
• Power consumption: 400 W (system power 406 W)
• Input voltage: 100–277 V
• Input frequency: 50/60 Hz
• Beam angle: 30×100°
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• Total luminous flux: 52,000 lm
• Color temperature: 6000 K (cool white)
• CRI: >80
• Power factor: >0.95
• Dimming: Dimmable
• IP rating: IP65
• IK rating: IK08
• Housing material: Die-cast aluminum
• Housing colour: Black
• Mounting: Adjustable bracket mount
• Fixture dimensions (L×W×H): 326×128×113 mm
• Fixture weight: 17.2 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Packaging & Shipping

• Product dimensions (mm): 326×128×113
• Net weight: 17.2 kg
• Export carton dimensions (mm): 400×360×230
• Products per carton: 1
• Export carton gross weight (kg): 8

Technical specifications

• System power: 406 W
• Number of LED modules: 1×6 modules
• Driver brand: Meanwell
• LED brand/type: Philips Lumileds (Luxeon TX)
• IK: IK08
• IP: IP65
• Mounting type: Adjustable bracket
• Replacement for: 1000 W metal halide/HID/HPS
• Recommended applications: Outdoor industrial areas, facades, yards, shipyards, large-area task lighting
