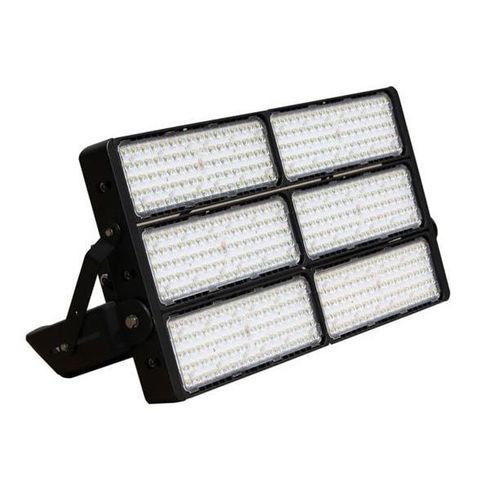

IP65 floodlight JNFLM18/6-400S-5000-A8-DIM
LEDfor stadiumfor parking lot

IP65 floodlight - JNFLM18/6-400S-5000-A8-DIM - JNLED - LED / for stadium / for parking lot
IP65 floodlight - JNFLM18/6-400S-5000-A8-DIM - JNLED - LED / for stadium / for parking lot
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium, for parking lot, industrial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
square
Dimmable
dimmable
Other characteristics
IK08, adjustable
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 406 W
(0.55 hp)

Min.: 400 W
(0.54 hp)

Luminous flux

Max.: 52,000 lm

Min.: 52,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Short description
400W modular LED flood light in 1×6 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable. IP65, IK08. Replaces 1000W metal halide/HID/HPS. Total luminous flux: 52,000 lm. System power: 406 W. Designed for outdoor industrial and commercial floodlighting.

Features
  • Configuration: 1×6 modules
  • LED type: Philips Lumileds (Luxeon TX)
  • LED driver: Meanwell driver(s)
  • Dimming: Dimmable
  • Beam angle: 140×140° (square beam)
  • Colour temperature: 6000 K (cool white)
  • Total lumens output: 52,000 lm
  • IP/IK rating: IP65 / IK08


Product Specifications (extracted from spec table)
  • Product SKU: JNFLM18/6-400S-5000-A8-DIM
  • Power consumption: 400 W (system power 406 W)
  • Input voltage: 100–277 V
  • Power factor: >0.95
  • Input frequency: 50/60 Hz
  • Color Rendering Index (CRI): >80
  • Beam angle: 140×140°
  • Color temperature: 6000 K
  • Total lumens: 52,000 lm
  • LED driver brand: Meanwell driver(s)
  • LED type: Philips Lumileds (Luxeon TX)
  • IK impact rating: IK08
  • Operating temperature: -20°C to 45°C
  • Working humidity range: 10%–90% RH
  • Lifespan: 50,000 hours
  • Warranty period: 5 years
  • Housing material: Die-cast aluminum, black
  • Dimensions (L×W×H): 326×128×113 mm
  • Product weight: 17.2 kg
  • Mounting type: Adjustable bracket mount


Packaging & Shipping (extracted)
  • Product dimensions (mm): 326×128×113
  • Net weight: 17.2 kg
  • Export carton dimensions (mm): 400×360×230
  • Products per carton: 1
  • Export carton gross weight: 8 kg


Applications
  • Outdoor area and perimeter lighting
  • Industrial yards and logistics centres
  • Sports facilities and stadium floodlighting
  • Façade and architectural floodlighting
  • Parking lots and port areas


Installation & Maintenance
  • Adjustable bracket for precise aiming and mounting
  • Suitable for compatible dimming controls when used with appropriate drivers
  • Recommended installation and maintenance by qualified technicians


Certifications & Warranty
  • Ingress protection: IP65
  • Impact protection: IK08
  • Warranty period: 5 years
