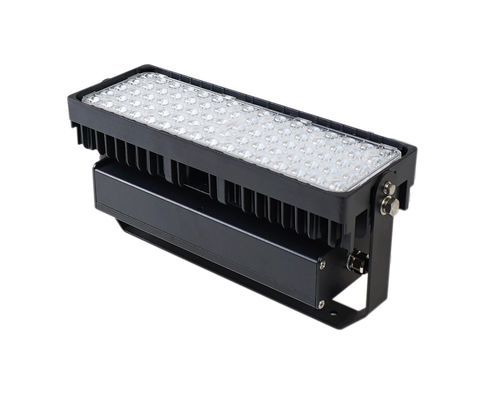

IP65 floodlight JNFLM12-100S-6500-A1-DIM

LEDoutdoorsquare

100W cool white modular LED flood light with a 1×2 module configuration, using original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). The fixture is dimmable, IP65 rated and designed to replace 250 Watt metal halide/HID/HPS luminaires.

Features

• Modular design (1×2 modules) for flexible configuration
• Dimmable operation with integrated Meanwell driver(s)
• High-quality Philips Lumileds (Luxeon TX) LEDs
• Rugged outdoor-rated enclosure with IP65 protection and IK08 impact rating
• Adjustable bracket mounting for aiming and installation versatility

Characteristics / Technical specifications

• Product SKU: JNFLM12-100S-6500-A1-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Beam Angle (°): 15×15° (square)
• Total Lumens Output: 13000 lm
• Colour Temperature (K): 6000 K (cool white)
• Color Rendering Index (CRI): >80
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Dimming Capability: Dimmable
• Power Factor: >0.95
• IK Impact Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Number of LED Modules: 1 module (configuration 1×2)
• Mounting Type: Adjustable Bracket Mount
• Fixture Length: 326 mm
• Fixture Width: 128 mm
• Fixture Height: 113 mm
• Product Dimensions: 326 × 128 × 113 mm
• Product Weight / Net Weight: 6 kg
• Export Carton Dimensions: 400 × 360 × 230 mm
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Warranty Period: 5 years
