IP65 floodlight JNFLM20-600S-6500-A8-DIM
LEDindustrialoutdoor

IP65 floodlight - JNFLM20-600S-6500-A8-DIM - JNLED - LED / industrial / outdoor
IP65 floodlight - JNFLM20-600S-6500-A8-DIM - JNLED - LED / industrial / outdoor
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
industrial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
square
Beam type
wash
Dimmable
dimmable
Other characteristics
IK08, adjustable
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 600 W
(0.82 hp)

Min.: 600 W
(0.82 hp)

Luminous flux

Max.: 78,000 lm

Min.: 78,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Product short description

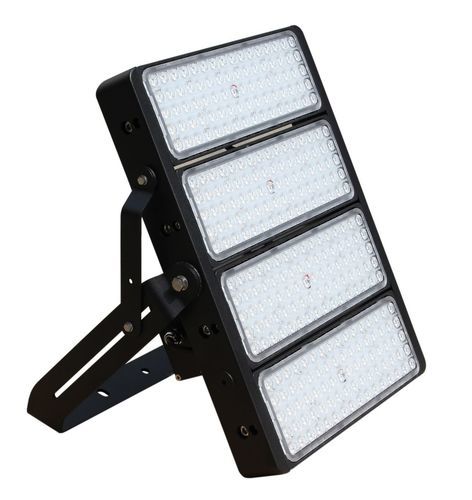

600W modular LED flood light in a 2x4 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable; IP65 rated. Designed to replace 1000W metal halide/HID/HPS fixtures in industrial and outdoor applications.

Features
  • Modular 2x4 LED configuration
  • Dimmable via compatible drivers
  • High-output Philips Lumileds (Luxeon TX) LEDs
  • Meanwell driver(s) for stable performance
  • Ingress protection IP65 for outdoor use
  • Square 140×140° beam angle
  • Replaces 1000W metal halide/HID/HPS


Product Specifications (table)
Product SKU: JNFLM20-600S-6500-A8-DIM
Power Consumption: 600 W
Input Voltage: 100-277V
Beam Angle (°): 140x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 78000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 606 W
Number of LED Modules: 8 modules (2x4 configuration)
Beam Angle Square: 140x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications
  • Product SKU: JNFLM20-600S-6500-A8-DIM
  • Power Consumption: 600 W
  • System Power: 606 W
  • Input Voltage: 100-277V
  • Input Frequency: 50/60 Hz
  • LED Type: Philips Lumileds (Luxeon TX)
  • LED Driver Brand: Meanwell driver(s)
  • Total Lumens Output: 78,000 lm
  • Color Temperature: 6000 K (cool white)
  • Color Rendering Index (CRI): >80
  • Beam Angle: 140x140° (square)
  • IP Rating: IP65
  • IK Rating: IK08
  • Power Factor: >0.95
  • Number of LED Modules: 8 modules (2x4 configuration)
  • Housing Material: Die-cast Aluminum; Housing Colour: Black
  • Mounting Type: Adjustable Bracket Mount
  • Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
  • Product Weight: 17.2 kg
  • Working Temperature Range: -20°C to 45°C
  • Working Humidity Range: 10%–90% RH
  • Lifespan: 50,000 hours
  • Warranty: 5 years
