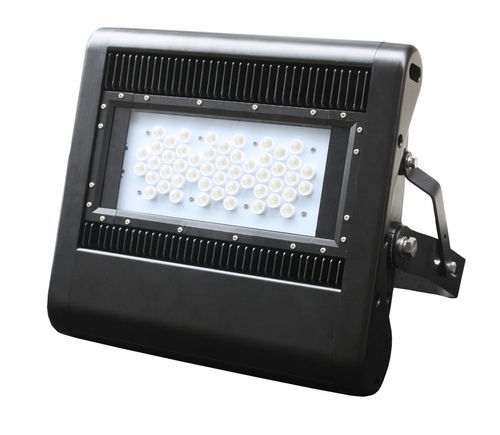

IP65 floodlight JNFL12-100S-5000-A1-DIM

LEDindustrialoutdoor

Overview

Compact, narrow-beam outdoor LED flood light designed for targeted illumination and retrofit replacement of conventional HID/metal-halide fixtures. Weatherproof housing and adjustable mounting bracket provide reliable external installation for architectural and industrial applications.

Key features

• Product SKU: JNFL12-100S-5000-A1-DIM
• Power Consumption: 100 W (System Power: 110 W)
• Input Voltage: 100-305 V
• Beam Angle: 15x15° (narrow-beam)
• IP Rating: IP65
• IK Impact Rating: IK07
• Color Rendering Index (CRI): >70
• LED Type: Philips Lumileds
• Total Lumen Output: 15,200 lm
• Colour Temperature: 5000 K (cool white)
• Dimming Capability: Dimmable
• LED Driver: Meanwell HLG-100H
• Power Factor: >0.95
• Number of LED Modules: 1 module
• Housing Colour: Black
• Dimensions (HxLxW): 366 x 387 x 91 mm
• Product Weight: 5 kg
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
• Mounting Type: Adjustable bracket
• Packaging: 2 units / export carton 460 x 450 x 380 mm, gross weight 8 kg

Applications

• Targeted outdoor illumination for facades and architectural details
• Retrofit replacement for HID / metal-halide fixtures
• Signage, industrial yards, ports and logistics areas
• Accent lighting for monuments and landscape features

Installation & mounting

• Adjustable mounting bracket for precise aiming and tilt
• Suitable for wall, ground or pole mounting with appropriate accessories
• Wide input voltage supports direct connection to mains 100-305 V
• IP65-rated enclosure for outdoor installations; ensure correct cable gland sealing

Warranty & compliance

• Lifespan: 50,000 hours (typical)
• Warranty period: 5 years
• Driver: Meanwell HLG-100H, power factor >0.95
• Ingress protection IP65 and impact protection IK07 suitable for external industrial environments
