IP65 floodlight JNFLM18/6-400S-5000-A7-DIM
LEDindustrialcommercial

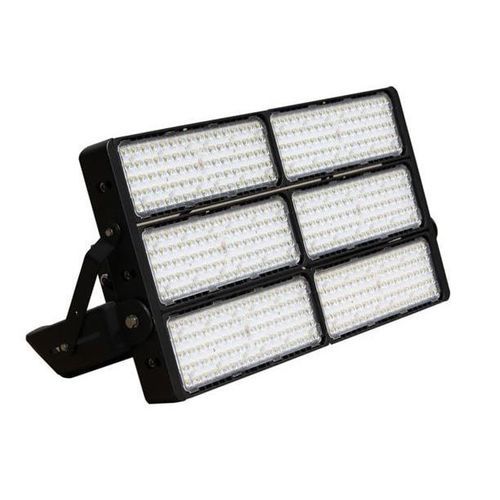

IP65 floodlight - JNFLM18/6-400S-5000-A7-DIM - JNLED - LED / industrial / commercial
IP65 floodlight - JNFLM18/6-400S-5000-A7-DIM - JNLED - LED / industrial / commercial
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
industrial, commercial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
rectangular
Dimmable
dimmable
Other characteristics
adjustable, IK08
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 400 W
(0.54 hp)

Min.: 400 W
(0.54 hp)

Luminous flux

Max.: 52,000 lm

Min.: 52,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Product description
400W modular LED flood light configured as 1×6 modules, fitted with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65 rated for outdoor use. Intended to replace 1000W metal halide/HID/HPS luminaires in industrial and commercial applications.

Key features
  • Dimmable modular LED flood light
  • Philips Lumileds (Luxeon TX) LEDs
  • Meanwell driver(s)
  • Beam angle: 50x140°
  • IP65 rated for outdoor use
  • High total lumen output: 52,000 lm
  • Designed to replace 1000W metal halide/HID/HPS
  • Die-cast aluminum housing, black
  • IK08 impact rating
  • Power factor >0.95
  • Operating temperature: -20°C to 45°C
  • Rated lifespan: 50,000 hours


Product specifications (table)
Product SKU: JNFLM18/6-400S-5000-A7-DIM
Power Consumption: 400 W
Input Voltage: 100-277V
Beam Angle (°): 50x140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 406 W
Number of LED Modules: 1 modules
Beam Angle Square: 50x140°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & shipping (table)
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113 mm
Fixture Width (mm): 128 mm
Fixture Length (mm): 326 mm

Technical specifications
  • SKU: JNFLM18/6-400S-5000-A7-DIM
  • Power: 400 W (System Power: 406 W)
  • Voltage: 100-277V
  • Beam angle: 50x140°
  • IP Rating: IP65
  • CRI: >80
  • LED type: Philips Lumileds (Luxeon TX)
  • Lumens: 52,000 lm
  • CCT: 6000 K
  • IK rating: IK08
  • Dimming: Dimmable
  • Housing: Die-cast Aluminum, Black
  • Power factor: >0.95
  • Frequency: 50/60 Hz
  • Mounting: Adjustable Bracket Mount
  • Dimensions (mm): 326 x 128 x 113
  • Weight: 17.2 kg
  • Driver: Meanwell
  • Operating temp: -20°C to 45°C
  • Operating humidity: 10% - 90% RH
  • Lifespan: 50,000 hours
  • Warranty: 5 years
