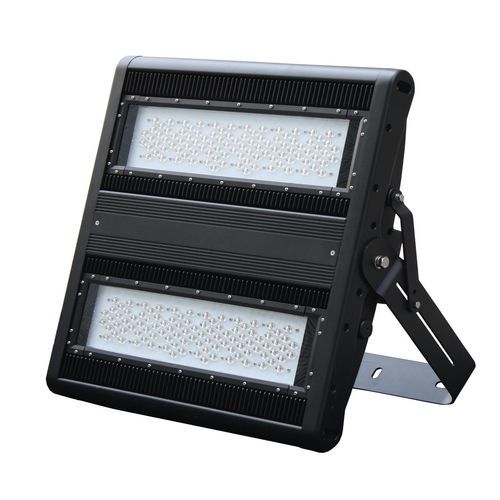

IP65 floodlight JNFL25-1800S-5000-A3-NDLEDindustrialoutdoor
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- industrial
- Interior/exterior use
- outdoor
- Shape
- square
- Beam type
- spot
- Dimmable
- not dimmable
- Other characteristics
- IK07, high-efficiency, adjustable
- Height
Max.: 161 mm
(6 in)Min.: 161 mm
(6 in)- Length
Max.: 788 mm
(31 in)Min.: 788 mm
(31 in)- Width
Max.: 665 mm
(26 in)Min.: 665 mm
(26 in)- Power
Max.: 1,800 W
(2.45 hp)Min.: 1,800 W
(2.45 hp)- Luminous flux
Max.: 211,000 lm
Min.: 211,000 lm
- Color temperature
Max.: 5,000 K
Min.: 5,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 70 unit
Description
Short description
High-power LED flood light JNFL25-1800S-5000-A3-ND with 1800 W system power (1700 W typical consumption), cool white 5000 K, Philips Lumileds LEDs and Meanwell HLG-series driver. Square 40x40° optics, IP65 and IK07 rated. Non-dimmable; suitable replacement for 2500 W metal halide/HID fixtures.
Specification Details
Robust outdoor LED flood light designed for industrial and commercial lighting of large areas. System power 1800 W with high lumen output (211,000 lm), high power factor >0.95 and CRI >70. Operating range -20°C to 45°C; mounting via adjustable bracket for precise aiming.
Product Specifications (table)
Product SKU: JNFL25-1800S-5000-A3-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100-305 V AC
Beam Angle (°): 40° (square 40x40°)
IP Rating: IP65
IK Impact Rating: IK07
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
Color Temperature (K): 5000 K
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours
Mounting Type: Adjustable Bracket
Fixture Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
Product Weight: 42 kg
LED Driver Brand: Meanwell HLG-1000H
Packaging & Shipping (table)
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950 × 880 × 270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg
Fixture Height (mm): 161
Fixture Width (mm): 665
Fixture Length (mm): 788
Technical features
High-power LED flood light JNFL25-1800S-5000-A3-ND with 1800 W system power (1700 W typical consumption), cool white 5000 K, Philips Lumileds LEDs and Meanwell HLG-series driver. Square 40x40° optics, IP65 and IK07 rated. Non-dimmable; suitable replacement for 2500 W metal halide/HID fixtures.
Specification Details
Robust outdoor LED flood light designed for industrial and commercial lighting of large areas. System power 1800 W with high lumen output (211,000 lm), high power factor >0.95 and CRI >70. Operating range -20°C to 45°C; mounting via adjustable bracket for precise aiming.
Product Specifications (table)
Product SKU: JNFL25-1800S-5000-A3-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100-305 V AC
Beam Angle (°): 40° (square 40x40°)
IP Rating: IP65
IK Impact Rating: IK07
Color Rendering Index (CRI): >70
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
Color Temperature (K): 5000 K
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH
Lifespan (Hours): 50,000 hours
Mounting Type: Adjustable Bracket
Fixture Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
Product Weight: 42 kg
LED Driver Brand: Meanwell HLG-1000H
Packaging & Shipping (table)
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950 × 880 × 270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg
Fixture Height (mm): 161
Fixture Width (mm): 665
Fixture Length (mm): 788
Technical features
- Product SKU: JNFL25-1800S-5000-A3-ND
- System Power: 1800 W / Power Consumption: 1700 W
- Input Voltage: 100–305 V AC
- Beam Angle: 40° (square 40x40°) for concentrated wide-area lighting
- IP Rating: IP65 — suitable for outdoor installations
- CRI: >70 for reliable color rendering
- LED: Philips Lumileds high-efficiency chips
- Total Luminous Flux: 211,000 lm
- Color Temperature: 5000 K (cool white)
- IK Rating: IK07
- Dimming: Non-dimmable (fixed output)
- Housing Colour: Black, industrial finish
- Power Factor: >0.95
- Warranty: 5 years
- Operating Temp.: -20°C to 45°C
- Operating Humidity: 10%–90% RH
- Dimensions (H×L×W): 161 × 788 × 665 mm
- Weight: 42 kg
- Driver: Meanwell HLG-1000H
- Lifespan: 50,000 hours
- Mounting: Adjustable bracket for aiming
- Packaging: 950 × 880 × 270 mm carton, 1 unit per carton
