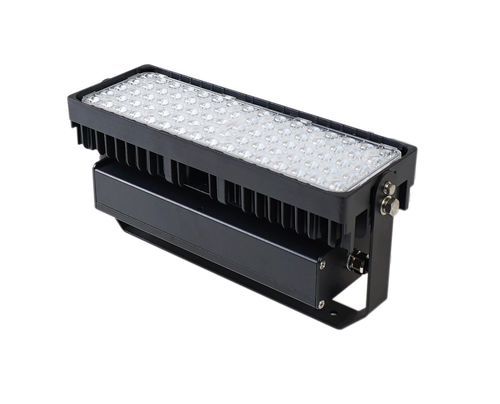

IP65 floodlight JNFLM12-100S-5000-A1-DIMLEDcommercialoutdoor
Add to favorites
Compare this product
Characteristics
- Protection class
- IP65
- Light source
- LED
- Application
- commercial
- Interior/exterior use
- outdoor
- Type
- surface-mounted
- Shape
- rectangular
- Beam type
- spot
- Dimmable
- dimmable
- Other characteristics
- adjustable, IK08
- Height
Max.: 113 mm
(4 in)Min.: 113 mm
(4 in)- Length
Max.: 326 mm
(13 in)Min.: 326 mm
(13 in)- Width
Max.: 128 mm
(5 in)Min.: 128 mm
(5 in)- Power
Max.: 100 W
Min.: 100 W
- Luminous flux
Max.: 13,000 lm
Min.: 13,000 lm
- Color temperature
Max.: 6,000 K
Min.: 6,000 K
- Color rendering index (CRI)
Max.: 100 unit
Min.: 80 unit
Description
Product overview
Modular LED floodlight for outdoor use with a 1×2 module configuration and adjustable bracket mount. Designed for targeted area and façade illumination with a rectangular 15×15° beam.
Technical specifications
Mechanical & mounting
Operating conditions & warranty
Modular LED floodlight for outdoor use with a 1×2 module configuration and adjustable bracket mount. Designed for targeted area and façade illumination with a rectangular 15×15° beam.
Technical specifications
- Product SKU: JNFLM12-100S-5000-A1-DIM
- Power Consumption: 100 W
- System Power: 106 W
- Input Voltage: 100-277 V
- Input Frequency: 50/60 Hz
- Beam Angle: 15×15° (rectangular)
- IP Rating: IP65
- IK Impact Rating: IK08
- Color Rendering Index (CRI): >80
- LED Type: Philips Lumileds (Luxeon TX)
- LED Driver Brand: Meanwell driver(s)
- Total Lumens Output: 13,000 lm
- Colour Temperature: 6000 K
- Dimming Capability: Dimmable
- Power Factor: >0.95
Mechanical & mounting
- Housing Material: Die-cast Aluminum
- Housing Colour: Black
- Number of LED Modules: 1 module (1×2 configuration)
- Mounting Type: Adjustable bracket mount
- Fixture Length: 326 mm
- Fixture Width: 128 mm
- Fixture Height: 113 mm
- Product Dimensions (mm): 326 x 128 x 113 mm
- Product Weight (Net): 6 kg
- Export Carton Dimensions (mm): 400 x 360 x 230
- Products per Carton: 1
- Export Carton Gross Weight: 8 kg
Operating conditions & warranty
- Environmental / Working Temperature Range: -20°C ~ 45°C
- Working Humidity Range: 10% - 90% RH
- Lifespan (Hours): 50,000 hours
- Warranty Period: 5 years
