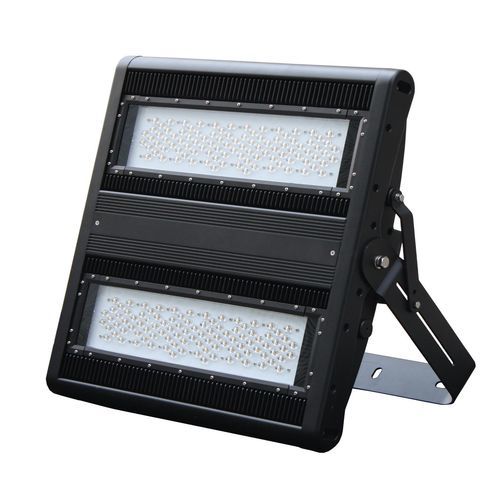

IP65 floodlight JNFL25-1800S-5000-A1-ND

LEDindustrialoutdoor

Product description
High-power 1800 W LED flood light JNFL25-1800S-5000-A1-ND for large outdoor and industrial installations. Fitted with original Philips Lumileds LEDs and a Meanwell HLG-1000H driver. Non-dimmable, IP65-rated housing and IK07 impact protection. Square 15×15° dual lens provides a concentrated square beam ideal for targeted illumination. Black housing with adjustable bracket for mounting. Suitable to replace 2500 W metal halide/HID luminaires. Rated lifespan 50,000 hours and 5-year warranty.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-1000H LED driver
• Non-dimmable
• IP65 rated housing
• 15×15° dual lens / square beam
• Black housing
• Adjustable bracket mounting

Product specifications (table)
Product SKU: JNFL25-1800S-5000-A1-ND
Power Consumption: 1700 W
Input Voltage: 100-305 V
Beam Angle (°): 15° / 15×15°
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 211000 lm
Color Temperature (K): 5000 K
IK Impact Rating: IK07
Dimming Capability: Non-dimmable
Housing Colour: Black
Power Factor: >0.95
Warranty Period (Years): 5
System Power: 1800 W
Number of LED Modules: 1 module
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket
Fixture Height (mm): 161 mm
Fixture Length (mm): 788 mm
Fixture Width (mm): 665 mm
Product Weight: 42 kg
LED Driver Brand: Meanwell HLG-1000H
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours

Technical specifications

• SKU: JNFL25-1800S-5000-A1-ND
• Power consumption: 1700 W
• System power: 1800 W
• Input voltage: 100–305 V
• LED type: Philips Lumileds
• LED driver: Meanwell HLG-1000H
• Total lumens: 211,000 lm
• Color temperature: 5000 K (cool white)
• Beam angle: 15×15° (square) / 15°
• IP rating: IP65
• IK rating: IK07
• CRI: >70
• Power factor: >0.95
• Mounting: Adjustable bracket
• Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
• Weight: 42 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years
