IP65 floodlight SKU: JNFL25-1800S-5000-A5-ND
LEDoutdoorrectangular

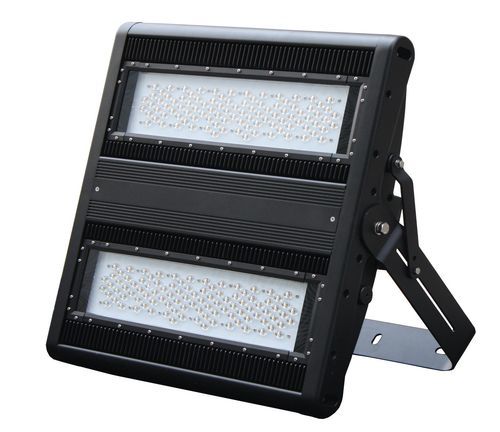

IP65 floodlight - SKU: JNFL25-1800S-5000-A5-ND - JNLED - LED / outdoor / rectangular
IP65 floodlight - SKU: JNFL25-1800S-5000-A5-ND - JNLED - LED / outdoor / rectangular
IP65 floodlight - SKU: JNFL25-1800S-5000-A5-ND - JNLED - LED / outdoor / rectangular - image - 2
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Interior/exterior use
outdoor
Shape
rectangular
Dimmable
not dimmable
Other characteristics
IK07
Height

Min.: 161 mm
(6 in)

Max.: 161 mm
(6 in)

Length

Min.: 788 mm
(31 in)

Max.: 788 mm
(31 in)

Width

Min.: 665 mm
(26 in)

Max.: 665 mm
(26 in)

Power

Min.: 1,800 W
(2.45 hp)

Max.: 1,800 W
(2.45 hp)

Luminous flux

Min.: 211,000 lm

Max.: 211,000 lm

Color temperature

Min.: 5,000 K

Max.: 5,000 K

Color rendering index (CRI)

Min.: 70 unit

Max.: 100 unit

Description

Short description
1800 W LED flood light equipped with original Philips Lumileds LEDs and a Meanwell HLG-1000H driver. Non-dimmable. IP65. Replaces 2500 W metal halide/HID/HPS.

Features
  • Original Philips Lumileds LEDs
  • Meanwell HLG-1000H LED driver
  • Non-dimmable
  • IP65 ingress protection
  • Replaces 2500 W metal halide/HID/HPS
  • Beam angle: 60×135° dual lens

Product Specifications
Product SKU: JNFL25-1800S-5000-A5-ND
System Power: 1800 W
Power Consumption: 1700 W
Input Voltage: 100-305 V
LED Type: Philips Lumileds
LED Driver: Meanwell HLG-1000H
Total Lumens Output: 211000 lm
Color Temperature (K): 5000 K (cool white)
Beam Angle: 60×135° (dual lens)
IP Rating: IP65
IK Impact Rating: IK07
Color Rendering Index (CRI): >70
Power Factor: >0.95
Warranty Period: 5 years
Lifespan: 50,000 hours
Number of LED Modules: 1
Dimensions (H×L×W): 161×788×665 mm
Product Weight: 42 kg
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Dimming Capability: Non-dimmable

Packaging & Shipping
Net Weight (kg): 42 kg
Export Carton Dimensions (mm): 950×880×270
Products per Carton: 1
Export Carton Gross Weight (kg): 41 kg

Technical specifications
  • System Power: 1800 W
  • Power Consumption: 1700 W
  • Input Voltage: 100-305 V
  • LED Type: Philips Lumileds
  • LED Driver: Meanwell HLG-1000H
  • Total Lumens: 211000 lm
  • Colour Temperature: 5000 K (cool white)
  • Beam Angle: 60×135° (dual lens)
  • IP Rating: IP65
  • IK Rating: IK07
  • CRI: >70
  • Warranty: 5 years
  • Lifespan: 50,000 hours
  • Dimensions (HxLxW): 161×788×665 mm
  • Weight: 42 kg
  • Operating Temp: -20°C to 45°C
  • Working Humidity: 10%-90% RH
