IP65 floodlight JNFLM18/6-400S-5000-A2-DIM
LEDoutdoorsurface-mounted

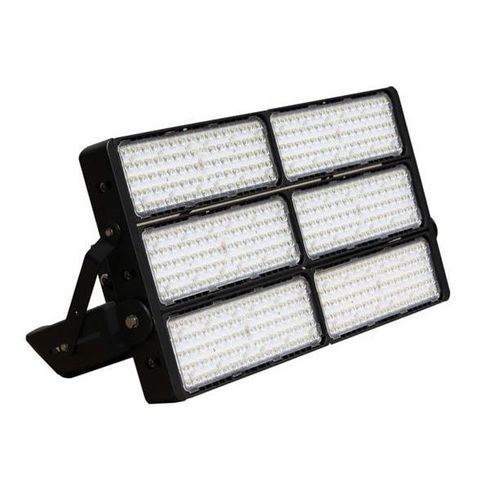

IP65 floodlight - JNFLM18/6-400S-5000-A2-DIM - JNLED - LED / outdoor / surface-mounted
IP65 floodlight - JNFLM18/6-400S-5000-A2-DIM - JNLED - LED / outdoor / surface-mounted
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Interior/exterior use
outdoor
Type
surface-mounted
Shape
rectangular
Beam type
spot
Dimmable
dimmable
Other characteristics
energy-saving, IK08, adjustable
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 400 W
(0.54 hp)

Min.: 400 W
(0.54 hp)

Luminous flux

Max.: 52,000 lm

Min.: 52,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Overview
400 W modular LED flood light in 1×6 module configuration with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable and IP65 rated, designed as an energy-efficient retrofit replacement for 1000 W metal halide/HID/HPS luminaires. SKU: JNFLM18/6-400S-5000-A2-DIM.

Features
  • Configuration: 1×6 modules
  • Original Philips Lumileds (Luxeon TX) LEDs
  • Meanwell driver(s)
  • Dimmable
  • IP65 rated
  • Replaces 1000 W metal halide/HID/HPS


Product Specifications
Product SKU: JNFLM18/6-400S-5000-A2-DIM
Power Consumption: 400 W
System Power: 406 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle (°): 30×30°
Total Lumens Output: 52,000 lm
Color Temperature (K): 6000 K
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
LED Driver Brand: Meanwell driver(s)
IP Rating: IP65
IK Impact Rating: IK08
Housing Material: Die-cast Aluminum
Housing Colour: Black
Mounting Type: Adjustable Bracket Mount
Fixture Dimensions (L×W×H): 326×128×113 mm
Product Weight: 17.2 kg
Power Factor: >0.95
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours
Warranty Period (Years): 5

Technical specifications
  • Power Consumption: 400 W
  • System Power: 406 W
  • Input Voltage: 100-277V
  • Input Frequency: 50/60 Hz
  • Beam Angle: 30×30°
  • Total Lumens: 52,000 lm
  • Colour Temperature: 6000 K (cool white)
  • CRI: >80
  • LED Type: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • IP Rating: IP65
  • IK Rating: IK08
  • Housing Material: Die-cast Aluminum
  • Housing Colour: Black
  • Mounting: Adjustable Bracket Mount
  • Dimensions (L×W×H): 326×128×113 mm
  • Weight: 17.2 kg
  • Operating Temp: -20°C to 45°C
  • Working Humidity: 10%–90% RH
  • Lifespan: 50,000 hours
  • Warranty: 5 years
