IP65 floodlight JNFLM12
LEDfor special eventsfor stadium

IP65 floodlight - JNFLM12 - JNLED - LED / for special events / for stadium
IP65 floodlight - JNFLM12 - JNLED - LED / for special events / for stadium
Add to favorites
Compare this product
Go to the JNLED website for more information

Characteristics

Protection class
IP65
Light source
LED
Application
for special events, for stadium, industrial
Interior/exterior use
outdoor
Type
surface-mounted
Shape
rectangular
Beam type
wall washer
Dimmable
dimmable
Other characteristics
high-efficiency, energy-saving, adjustable, IK08
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 100 W
(0.14 hp)

Min.: 100 W
(0.14 hp)

Luminous flux

Max.: 13,000 lm

Min.: 13,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Overview

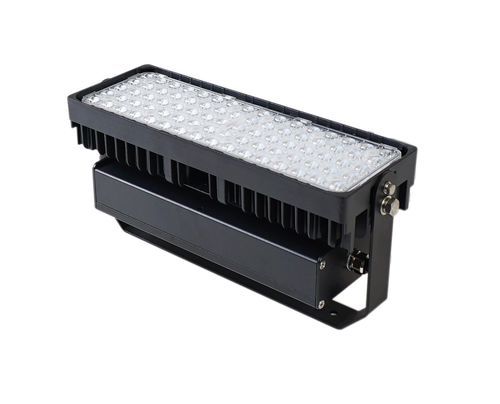

Modular outdoor LED floodlight engineered for energy-efficient, high-output illumination with dimming capability and IP65 weather protection. Compact die-cast aluminum housing with adjustable bracket for flexible aiming.

Applications

  • Façade and architectural lighting
  • Industrial yards and storage areas
  • Signage and billboard illumination
  • Sports facilities and event lighting


Key technical specifications

  • Product SKU: JNFLM12-100S-5000-A6-DIM
  • Power Consumption: 100 W
  • System Power: 106 W
  • Input Voltage: 100-277 V
  • Beam Angle: 40×100°
  • IP Rating: IP65
  • Colour Rendering Index (CRI): >80
  • LED Type: Philips Lumileds (Luxeon TX)
  • Total Lumens Output: 13,000 lm
  • Colour Temperature: 6000 K
  • IK Impact Rating: IK08
  • Dimming Capability: Dimmable
  • Housing Colour: Black
  • Power Factor: >0.95
  • Input Frequency: 50/60 Hz
  • Housing Material: Die-cast Aluminum
  • Warranty Period: 5 years
  • Number of LED Modules: 1 module (configuration 1×2 modules)
  • Mounting Type: Adjustable Bracket Mount
  • Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
  • Product Weight / Net Weight: 6 kg
  • LED Driver Brand: Meanwell driver(s)
  • Working Temperature Range: -20°C to 45°C
  • Working Humidity Range: 10% - 90% RH
  • Lifespan: 50,000 hours
  • Packaging — Export Carton Dimensions: 400 × 360 × 230 mm
  • Packaging — Products per Carton: 1
  • Packaging — Export Carton Gross Weight: 8 kg


Installation & mounting

  • Adjustable bracket mount for precise aiming and tilt
  • Universal 100–277 V input for direct mains connection
  • Integrated Meanwell driver; allow access for wiring and maintenance


Compliance & warranty

  • IP65 and IK08 ratings for outdoor protection and impact resistance
  • CRI >80 for accurate colour rendering
  • 5-year warranty


Ordering & packaging

  • SKU: JNFLM12-100S-5000-A6-DIM
  • Packaged individually in export carton (400 × 360 × 230 mm)
  • Gross weight per carton: 8 kg
