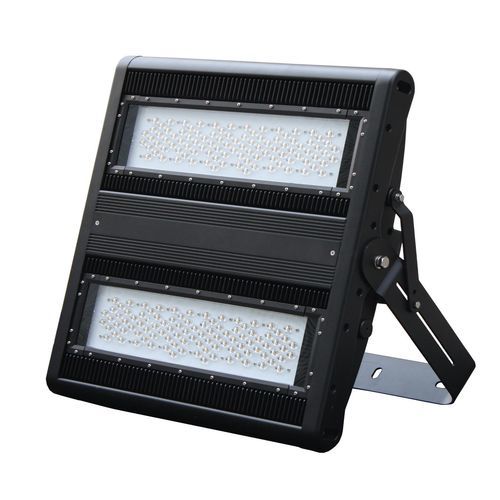

IP65 floodlight JNFL25-1800S-4500-A3-ND

LEDindustrialfor stadium

Product summary
JNFL25-1800S-4500-A3-ND is an 1800 W LED flood light featuring Philips Lumileds LED chips and a Meanwell HLG-1000H driver. Non-dimmable, nominal color temperature 4500 K (natural white), square 40×40° optics, IP65 and IK07 rated. Designed as a direct replacement for 2500 W metal halide/HID/HPS fixtures in industrial, sports and outdoor applications.

Product specifications

• SKU: JNFL25-1800S-4500-A3-ND
• System Power: 1800 W (Power Consumption: 1700 W)
• Input Voltage: 100–305 V
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-1000H
• Total Lumen Output: 211000 lm
• Color Temperature: 4500 K
• CRI: >70
• Beam Angle: 40×40° (square)
• IP Rating: IP65
• IK Rating: IK07
• Power Factor: >0.95
• Dimming: Non-dimmable
• Number of LED Modules: 1 module
• Dimensions (H×L×W): 161 mm × 788 mm × 665 mm
• Weight: 42 kg
• Operating Temperature: -20°C to 45°C
• Operating Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Applications

• Industrial yards, logistics terminals and warehouses
• Sports fields and stadium perimeter lighting
• Port areas, shipyards and outdoor storage facilities
• Façade and large-area architectural lighting

Mounting & installation

• Adjustable mounting bracket for aiming control
• Fixture weight 42 kg — ensure suitable support structure and lifting equipment
• Supply connection: 100–305 V; driver: Meanwell HLG-1000H (integrated)
• Suitable for outdoor installations with IP65 protection; maintain clearance for heat dissipation

Packaging & shipping

• Net Weight: 42 kg
• Export Carton Dimensions: 950 × 880 × 270 mm
• Products per Carton: 1
• Export Carton Gross Weight: 41 kg

Warranty & compliance

• Expected lifespan: 50,000 hours
• Warranty period: 5 years
• Ingress protection IP65 and impact rating IK07 suitable for outdoor and industrial environments
