IP65 floodlight JNFLM20-600S-6500-A3-ND

LEDfor sports fieldsindustrial

Overview

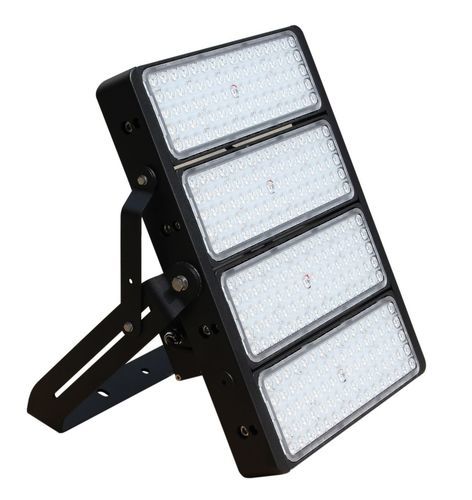

600 W modular LED flood light in a 2×4 module configuration. Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Square 60×60° beam, cool white 6000 K. IP65-rated housing; replaces 1000 W metal halide/HID/HPS luminaires. Title indicates non-dimmable; some specification entries on the product page list dimmable (see Notes).

Key features

• Configuration: 2×4 modules
• LED type: Philips Lumileds (Luxeon TX)
• LED driver: Meanwell driver(s)
• Power consumption: 600 W (system power 606 W)
• Beam angle: 60×60° (square)
• Color temperature: 6000 K (cool white)
• Total lumen output: 78,000 lm
• CRI: >80
• Power factor: >0.95
• IP rating: IP65
• IK impact rating: IK08
• Housing: Die-cast aluminum, colour: Black
• Mounting: Adjustable bracket mount
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 17.2 kg
• Operating temperature: -20°C to 45°C
• Operating humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Warranty: 5 years

Product specifications (table)
Product SKU : JNFLM20-600S-6500-A3-ND
Power Consumption : 600 W
System Power : 606 W
Input Voltage : 100-277V
Beam Angle (°) : 60x60°
IP Rating : IP65
Color Rendering Index : >80
LED Type : Philips Lumileds (Luxeon TX)
Total Lumens Output : 78,000 lm
Color Temperature (K) : 6000
IK Impact Rating : IK08
Dimming Capability : Dimmable (page shows inconsistency with title stating non-dimmable)
Housing Colour : Black
Power Factor : >0.95
Input Frequency : 50/60 Hz
Housing Material : Die-cast Aluminum
Warranty Period (Years) : 5
System Power : 606 W
Number of LED Modules : 1 modules
Beam Angle Square : 60x60°
Environmental Temperature Range : -20°C ~ 45°C
Mounting Type : Adjustable Bracket Mount
Fixture Height (mm) : 113 mm
Fixture Length (mm) : 326 mm
Fixture Width (mm) : 128 mm
Product Weight : 17.2 kg
LED Driver Brand : Meanwell driver(s)
Working Humidity Range : 10%-90% RH
Lifespan (Hours) : 50,000 hours

Applications

• Industrial yard and site floodlighting
• Warehouse and logistics area lighting
• Port, dock and shipyard illumination
• Sports facilities and outdoor courts
• Façade and architectural floodlighting

Notes
Title/short description indicate the product is non-dimmable while the specification table lists "Dimmable". Confirm dimming capability and driver configuration with the supplier before ordering if dimming is required.
