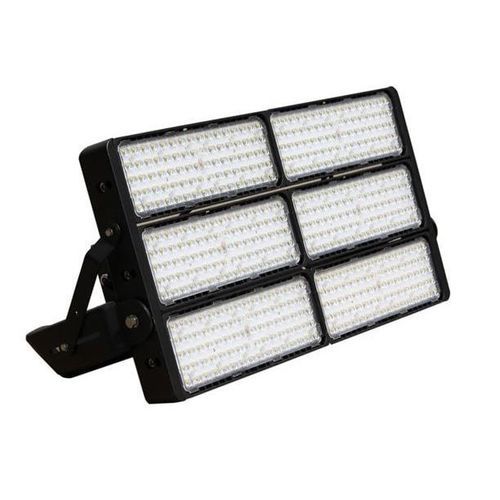

IP65 floodlight JNFLM18/6-400S-5000-A1-ND

LEDoutdoorsurface-mounted

Short description
400W modular LED flood light JNFLM18/6-400S-5000-A1-ND, configuration 1×6 modules (6 LED modules). Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Square beam 15×15°, 6000 K (cool white), total luminous flux 52,000 lm. IP65, IK08. Non-dimmable as standard; dimmable variants available on request—confirm with supplier.

Features

• Configuration: 1×6 modules (6 LED modules)
• Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• IP65 rating for outdoor use
• Designed to replace 1000 W metal halide / HID / HPS
• Die-cast aluminum housing, black finish
• Adjustable bracket mount for aiming

Product Specifications
Product SKU: JNFLM18/6-400S-5000-A1-ND
Power Consumption: 400 W (system power: 406 W)
Input Voltage: 100–277 V
Beam Angle (°): 15×15° (square beam)
IP Rating: IP65
Color Rendering Index (CRI): >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52,000 lm
Color Temperature (CCT): 6000 K (cool white)
IK Impact Rating: IK08
Dimming Capability: Non-dimmable (standard). Optional dimmable variants available on request
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast aluminum
Warranty Period: 5 years
System Power: 406 W
Number of LED Modules: 6 (configuration 1×6)
Environmental Temperature Range: -20°C to 45°C
Mounting Type: Adjustable bracket mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell
Working Humidity Range: 10%–90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• Model / Series reference (SKU): JNFLM18/6-400S-5000-A1-ND
• Power: 400 W (system power listed 406 W)
• Input voltage: 100–277 V
• Beam angle: 15×15° (square beam)
• IP rating: IP65
• CRI: >80
• LED: Philips Lumileds (Luxeon TX)
• Lumens: 52,000 lm
• CCT: 6000 K (cool white)
• Impact rating: IK08
• Dimming: Non-dimmable (standard); optional dimmable variants available
• Housing: Die-cast aluminum, black
• Power factor: >0.95
• Frequency: 50/60 Hz
• Driver: Meanwell
• Warranty: 5 years
• Operating temperature: -20°C to 45°C
• Working humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Dimensions (L×W×H): 326×128×113 mm
• Weight: 17.2 kg
• Mounting: Adjustable bracket mount
