IP65 floodlight JNFLM18/6-400S-5000-A3-DIM
LEDindustrialfor stadium

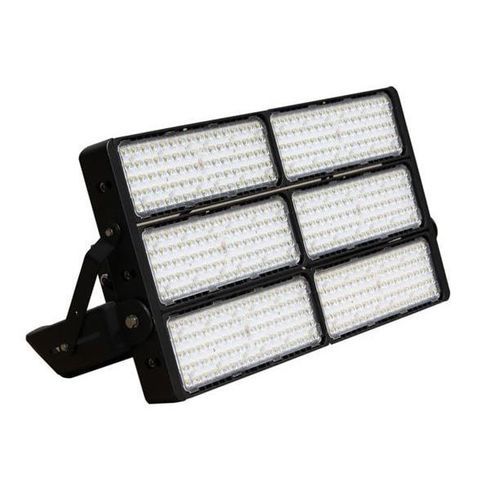

IP65 floodlight - JNFLM18/6-400S-5000-A3-DIM - JNLED - LED / industrial / for stadium
IP65 floodlight - JNFLM18/6-400S-5000-A3-DIM - JNLED - LED / industrial / for stadium
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
industrial, for stadium, for sports fields
Interior/exterior use
outdoor
Shape
rectangular
Dimmable
dimmable
Other characteristics
IK08
Height

Min.: 113 mm
(4 in)

Max.: 113 mm
(4 in)

Length

Min.: 326 mm
(13 in)

Max.: 326 mm
(13 in)

Width

Min.: 128 mm
(5 in)

Max.: 128 mm
(5 in)

Power

Min.: 400 W
(0.54 hp)

Max.: 400 W
(0.54 hp)

Luminous flux

Min.: 52,000 lm

Max.: 52,000 lm

Color temperature

Min.: 6,000 K

Max.: 6,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Description

Short description
400W modular LED flood light in a 1×6 module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65 rated. Designed to replace 1000W metal halide/HID/HPS luminaires for outdoor industrial, sports and area lighting applications.

Features
  • Configuration: 1×6 modules
  • LED: Philips Lumileds (Luxeon TX)
  • LED Driver: Meanwell driver(s)
  • Dimmable
  • IP Rating: IP65
  • Replaces 1000W metal halide/HID/HPS

Product Specifications
Product SKU: JNFLM18/6-400S-5000-A3-DIM
Power Consumption: 400 W
Input Voltage: 100-277V
Beam Angle (°): 60x60°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 52000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 406 W
Number of LED Modules: 1 modules
Beam Angle Square: 60x60°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours

Packaging & Shipping
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400x360x230
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113
Fixture Width (mm): 128
Fixture Length (mm): 326

Technical specifications
  • SKU: JNFLM18/6-400S-5000-A3-DIM
  • Power Consumption: 400 W
  • Input Voltage: 100-277V
  • Beam Angle: 60x60°
  • IP Rating: IP65
  • CRI: >80
  • LED Type: Philips Lumileds (Luxeon TX)
  • Lumens: 52000 lm
  • Colour Temperature: 6000 K
  • IK Rating: IK08
  • Dimming: Dimmable
  • Housing Colour: Black
  • Power Factor: >0.95
  • Input Frequency: 50/60 Hz
  • Housing Material: Die-cast Aluminum
  • Warranty: 5 years
  • System Power: 406 W
  • Number of LED Modules: 1
  • Environmental Temp Range: -20°C ~ 45°C
  • Mounting: Adjustable Bracket Mount
  • Fixture Dimensions (HxLxW mm): 113 x 326 x 128
  • Product Weight: 17.2 kg
  • LED Driver Brand: Meanwell
  • Working Humidity: 10%-90% RH
  • Lifespan: 50,000 hours
