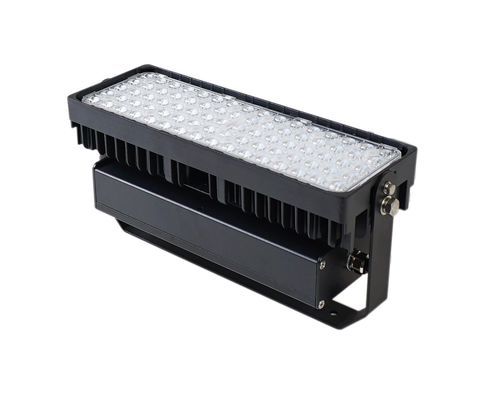

IP65 floodlight JNFLM12-100S-5000-A7-DIM

LEDoutdoorrectangular

A 100W modular cool white (6000 K) dimmable LED floodlight JNFLM12-100S-5000-A7-DIM delivering a focused 50×140° beam for targeted outdoor illumination. IP65-rated, designed to replace 150–175W metal halide/HID/HPS luminaires while providing high lumen output, long life and dimming capability.

Highlights

• Modular 1×2 module configuration for flexible installation and simplified maintenance
• Uses original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s)
• Dimmable; suitable for 100–277V input and 50/60 Hz operation
• High lumen output: 13,000 lm at cool white 6000 K
• Durable die-cast aluminum housing, IK08 impact rating and IP65 ingress protection

Technical specifications

• Product SKU: JNFLM12-100S-5000-A7-DIM
• Power Consumption: 100 W
• Input Voltage: 100-277V
• Beam Angle (°): 50×140°
• IP Rating: IP65
• Color Rendering Index: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 13,000 lm
• Color Temperature (K): 6000
• IK Impact Rating: IK08
• Dimming Capability: Dimmable
• Housing Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Housing Material: Die-cast Aluminum
• Warranty Period (Years): 5
• System Power: 106 W
• Number of LED Modules: 1 module
• Beam Angle Square: 50×140°
• Environmental Temperature Range: -20°C ~ 45°C
• Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Mounting Type: Adjustable bracket mount
• Fixture Height (mm): 113 mm
• Fixture Length (mm): 326 mm
• Fixture Width (mm): 128 mm
• Product Weight: 6 kg
• LED Driver Brand: Meanwell driver(s)
