IP65 floodlight JNFLM18/6-400S-5000-A8-ND
LEDoutdoorsquare

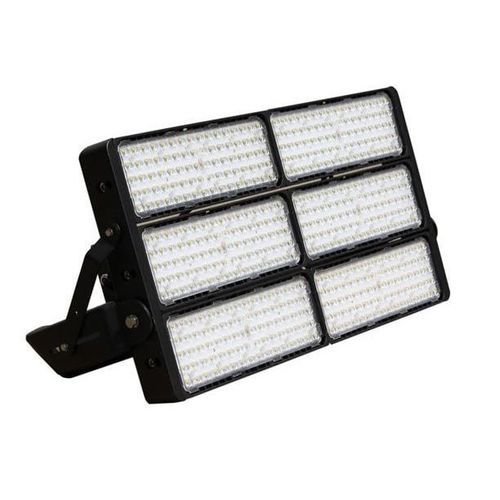

IP65 floodlight - JNFLM18/6-400S-5000-A8-ND - JNLED - LED / outdoor / square
IP65 floodlight - JNFLM18/6-400S-5000-A8-ND - JNLED - LED / outdoor / square
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Interior/exterior use
outdoor
Shape
square
Beam type
wash
Dimmable
not dimmable
Other characteristics
adjustable, IK08
Height

Min.: 113 mm
(4 in)

Max.: 113 mm
(4 in)

Length

Min.: 326 mm
(13 in)

Max.: 326 mm
(13 in)

Width

Min.: 128 mm
(5 in)

Max.: 128 mm
(5 in)

Power

Min.: 400 W
(0.54 hp)

Max.: 400 W
(0.54 hp)

Luminous flux

Min.: 52,000 lm

Max.: 52,000 lm

Color temperature

Min.: 6,000 K

Max.: 6,000 K

Color rendering index (CRI)

Min.: 80 unit

Max.: 100 unit

Description

Product Overview
400W modular LED flood light in a 1×6 module configuration. Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable, IP65-rated for outdoor use. Total lumen output 52,000 lm, square beam 140×140°, color temperature 6000 K (cool white). Die-cast aluminium housing, black finish, IK08 impact rating. Designed to replace 1000W metal halide/HID/HPS fixtures.

Features
  • Configuration: 1×6 modules
  • LEDs: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • IP Rating: IP65 (suitable for outdoor use)
  • Total lumen output: 52,000 lm
  • Beam angle: 140×140° (square)
  • Color temperature: 6000 K (cool white)
  • Power factor: >0.95
  • Housing: die-cast aluminium, black
  • Impact rating: IK08
  • Replaces 1000W metal halide/HID/HPS
  • Dimming capability: Non-dimmable


Product Specifications
SKU: JNFLM18/6-400S-5000-A8-ND
Power consumption: 400 W
System power: 406 W
Input voltage: 100–277 V
Input frequency: 50/60 Hz
Beam angle: 140×140° (square)
Total lumen output: 52,000 lm
LED type: Philips Lumileds (Luxeon TX)
LED driver brand: Meanwell
Color temperature: 6000 K
Color rendering index (CRI): >80
Dimming capability: Non-dimmable
IP rating: IP65
IK rating: IK08
Power factor: >0.95
Housing material: Die-cast aluminium, colour: Black
Number of LED modules: 6 (1×6 configuration)
Fixture dimensions (L×W×H): 326 × 128 × 113 mm
Fixture weight: 17.2 kg
Operating temperature: -20°C to 45°C
Operating humidity: 10%–90% RH
Lifespan: 50,000 hours
Warranty: 5 years

Packaging & Shipping
Product dimensions (mm): 326 × 128 × 113 mm
Net weight: 17.2 kg
Export carton dimensions (mm): 400 × 360 × 230 mm
Products per carton: 1
Export carton gross weight: 8 kg

Technical specifications
  • SKU: JNFLM18/6-400S-5000-A8-ND
  • Power consumption: 400 W
  • System power: 406 W
  • Input voltage: 100–277 V
  • Input frequency: 50/60 Hz
  • Beam angle: 140×140° (square)
  • Total lumen output: 52,000 lm
  • Color temperature: 6000 K (cool white)
  • CRI: >80
  • LED type: Philips Lumileds (Luxeon TX)
  • LED driver brand: Meanwell
  • Dimming capability: Non-dimmable
  • IP rating: IP65
  • IK rating: IK08
  • Power factor: >0.95
  • Housing material: Die-cast aluminium, colour: Black
  • Mounting: Adjustable bracket mount
  • Operating temperature: -20°C to 45°C
  • Operating humidity: 10%–90% RH
  • Fixture dimensions (L×W×H): 326 × 128 × 113 mm
  • Product weight: 17.2 kg
  • Lifespan: 50,000 hours
  • Warranty: 5 years
