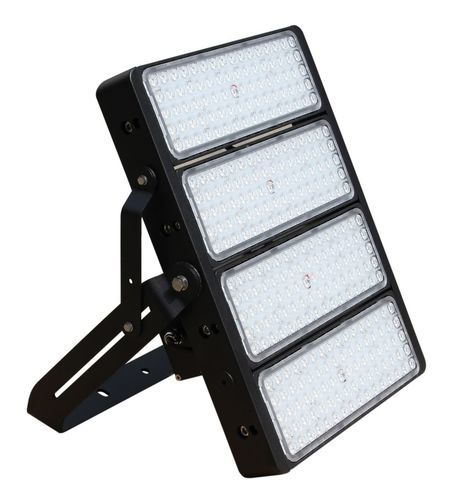

IP65 floodlight JNFLM20-600S-6500-A4-ND
LEDfor stadiumoutdoor

IP65 floodlight - JNFLM20-600S-6500-A4-ND - JNLED - LED / for stadium / outdoor
IP65 floodlight - JNFLM20-600S-6500-A4-ND - JNLED - LED / for stadium / outdoor
Add to favorites
Compare this product

Characteristics

Protection class
IP65
Light source
LED
Application
for stadium
Interior/exterior use
outdoor
Type
surface-mounted
Shape
square
Beam type
wash
Dimmable
not dimmable
Other characteristics
adjustable, IK08
Height

Max.: 113 mm
(4 in)

Min.: 113 mm
(4 in)

Length

Max.: 326 mm
(13 in)

Min.: 326 mm
(13 in)

Width

Max.: 128 mm
(5 in)

Min.: 128 mm
(5 in)

Power

Max.: 600 W
(0.82 hp)

Min.: 600 W
(0.82 hp)

Luminous flux

Max.: 78,000 lm

Min.: 78,000 lm

Color temperature

Max.: 6,000 K

Min.: 6,000 K

Color rendering index (CRI)

Max.: 100 unit

Min.: 80 unit

Description

Short description
600W modular LED flood light in a 2×4-module configuration, equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Non-dimmable. IP65-rated housing. Designed as a direct replacement for 1000W metal halide / HID / HPS luminaires.

Features
  • Configuration: 2×4 modules (8 LEDs)
  • LED: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • Beam angle: 90×90° (square)
  • IP rating: IP65
  • Suitable replacement for 1000W metal halide / HID / HPS
  • Housing colour: Black
  • Housing material: Die-cast aluminum


Product specifications
Product SKU: JNFLM20-600S-6500-A4-ND
Power Consumption: 600 W
System Power: 606 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle (°): 90×90°
Beam Angle Square: 90×90°
Number of LED Modules: 8 (2×4 configuration)
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 78,000 lm
Color Temperature (K): 6000 K (cool white)
Color Rendering Index: >80
IP Rating: IP65
IK Impact Rating: IK08
Dimming Capability: Non-dimmable
Power Factor: >0.95
Environmental Temperature Range: -20°C ~ 45°C
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%–90% RH
Mounting Type: Adjustable bracket mount
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Fixture Height (mm): 113 mm
Product Weight: 17.2 kg
LED Driver Brand: Meanwell driver(s)
Lifespan (Hours): 50,000 hours
Warranty: 5 years

Packaging & Shipping
Product Dimensions (mm): 326 × 128 × 113 mm
Net Weight (kg): 17.2 kg
Export Carton Dimensions (mm): 400 × 360 × 230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Characteristics / technical specifications
  • SKU: JNFLM20-600S-6500-A4-ND
  • Power: 600 W
  • System Power: 606 W
  • Input Voltage: 100-277V
  • Beam Angle: 90×90°
  • IP Rating: IP65
  • Lumens: 78,000 lm
  • Colour Temperature: 6000 K (cool white)
  • LED Type: Philips Lumileds (Luxeon TX)
  • Driver: Meanwell driver(s)
  • Housing: Die-cast aluminum, Black
  • Dimensions (mm): 326 × 128 × 113
  • Weight: 17.2 kg
  • IK Rating: IK08
  • Power Factor: >0.95
  • Operating Temp: -20°C to 45°C
  • Humidity: 10%–90% RH
  • Lifespan: 50,000 hours
  • Warranty: 5 years
